1261003 SAB High Temperature Cables

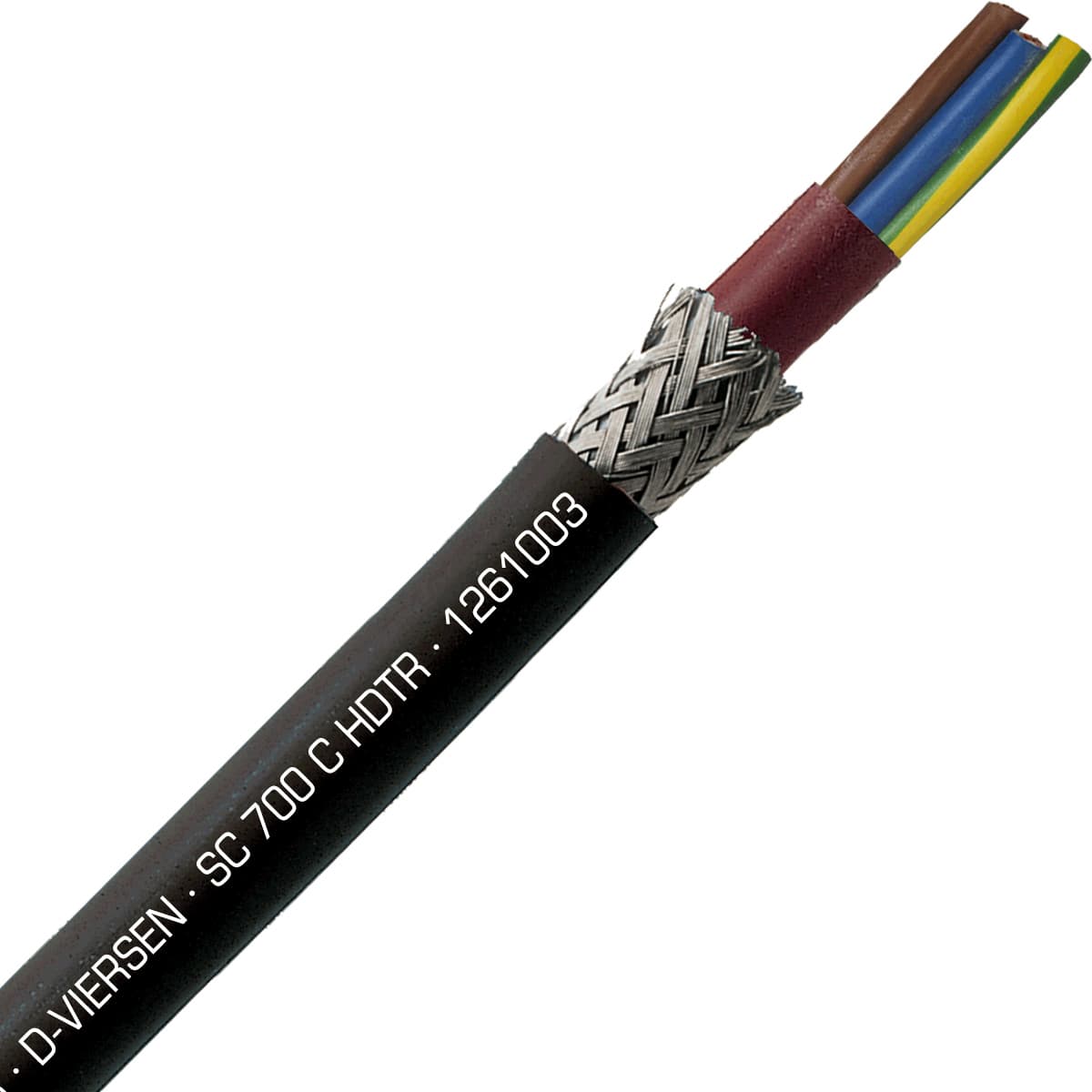

SAB 1261003 SC 700 C HDTR - 10 AWG/3c, shielded halogen-free high temperature silicone cable, UL, CSA, CE, RoHS
SAB

Part#:1261003

Manufacturer:SAB

Product Lifecycle:Active

Get a quick Quote!

SC 700 C HDTR - 10 AWG/3c, shielded halogen-free high temperature silicone cable, UL, CSA, CE, RoHS

About the manufacturer: SAB is one of the manufacturers that offers High Temperature Cables that you can order at Advantage Electric Supply site. SAB North America acts as the central hub for sales, distribution, and service for SAB Bröckskes, a German company that specializes in cables, wires, cable harnesses, and temperature measurement tools. Our top-quality cables are shipped to more than 40 countries on a daily basis.

Check out the 1261003 SAB price in the box on the right side or send a quick quote.

Product Details

  • Color
    Black
  • Weight
    113.85 g
  • Chemical Resistant
    NO
  • Oil Resistant
    No
  • UV Resistant
    NO
  • Halogen Free
    YES
  • Submersible
    NO
  • Direct Burial
    NO
  • Movement Type
    Stationary/Flexible
  • Application
    Control, Power
  • Gauge
    10 AWG
  • Number of conductors
    3
  • Cable configuration
    10 AWG (≈ 78/28)/3c
  • Stranding type
    nickel plated copper strands, class 5
  • Insulation type
    Besilen (silicone)
  • Shielded
    Yes
  • Voltage
    600
  • Approvals
    UR AWM, CE, EAC, RoHS
  • RoHS
    YES
  • Temperature range
    -40°C to +200°C; +250°C (short-term use)
  • Outside diameter (OD)
    0.594 in
  • UOM
    ft
  • CSA Certification
    NO
  • UL Certification
    YES
  • CE Certification
    YES

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

1261003 Description

SAB 1261003 High Temperature Cable is part of SC 700 C HDTR product family, and is designed for Control, Power applications. This cable is 10 AWG with 3 conductors, and shielded 10 AWG (≈ 78/28)/3c cable configuration. Featuring Black color jacket, Besilen (silicone) insulation, and nickel plated copper strands, class 5 stranding. It has 0.594 in OD, constructed to support Stationary/Flexible movement type, and rated for 600 volts. This Control, Power cable can operate in -40°C to +200°C; +250°C (short-term use) temperature range, it is Halogen free, and has following approvals: UR AWM, CE, EAC, RoHS. This cable is an excellent choice for Control, Power applications.

Related documents 1261003 Specs

1261003 SC_700_C_HDTR.pdf
