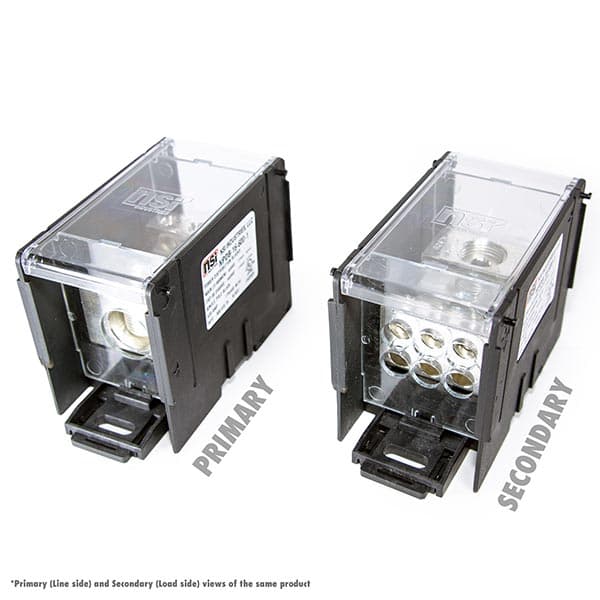

NPDB-16-600-1 NSI Industries Power Distribution Blocks

Product Details

• Overcurrent Protection:
  Fuse Class & (Max. Amp).: Class J (110A), Class T (110A), Class RK1 (60A), Class RK5 (30A), Class G (60A), Class CC (30A)
• Application:
  Splicing or Tapping of 1-2 Primary (Line/Main) Conductors to 1-12 Secondary (Load/Tap) Side Conductors
• Certifications 2:
  Finger Safe IP20 per IEC60529
• Additional Feature 1:
  Replacement Cover P/N: CLNPDB
• Additional Feature 2:
  Locking Mechanism to lock/release block on DIN Rail
• Additional Feature 3:
  35mm DIN Rail Mountable
• Material Composition 3:
  Connector: 6061-T6 AL, Electro-tin Plated
• Certifications 1:
  UL1953 and UL1059 Listed, cULus
• Material Composition 2:
  Finger Safe Panels & Cover: Lexan 500R Polycarbonate
• Material Composition 1:
  Base: Valox Nylon 6/6
• Operating Temperature:
  90c
• Torque Data:
  Primary Max: 442 in.lbf. - Secondary Max: 120 in.lbf.
• Wire Range (Primary - Secondary):
  PDB, 1 POLE: LINE 1 X 600-4, LOAD 6 X 2/0-14
• Wire Strip Length:
  Primary Max: 1.0 in. - Secondary Max: 0.5 in.
• Conductor Stranding Class:
  Class B, C
• AL9CU:
  Dual Rated for use with copper or aluminum conductor, 90c Op.Temp.
• Color:
  Black Base, Clear Finger Safe Panels and Cover
• Mounting:
  Slotted Holes in Base, 35mm DIN Rail w/Locking Feature
• Maximum Ampacity/Pole:
  420A
• Voltage Rating:
  600V
Dimensional Size:
Large PDB overall dimensions: L: 5.80” x W: 2.75” x H: 3.75”
Type:
Single Primary (Line), Single Secondary (Load)
