V300697 Mersen Fuses
Part#:V300697
Manufacturer:Mersen
Category:Fuses
Alt. Part#:3605340576481
Product Lifecycle:Active
Get a quick Quote!

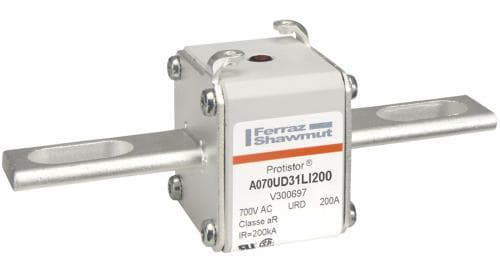

V300697 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 200A With Striker Slotted Blades long
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V300697 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 200 A
- Terminal Type Slotted Blades
- Weight 417.68 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Sell Pack Weight 2.76 lb
- Sell Pack Quantity 3 EACH
- Sell Pack Height 2.36 in
- Sell Pack Length 6.5 in
- Sell Pack Width 6.1 in
- Product Height 2.22 in
- Product Width 2.01 in
- Product Length 5.85 in
- Product Weight 0.92 lb
- Body/Insulating Material Ceramic
- Connection/Terminal Material Silver-Plated Copper
- Connection/Terminal Type Slotted Blades
- Indication System Type Striker
- Indication System Yes
- AC Max I.R./Breaking Capacity: I1 200 kA
- Power Dissipation at Rated Current Value 45 W
- Melting I2t 2600 A²s
- Clearing I2t At Rated Voltage 15000 A²s
- Catalogue No. A070UD31LI200
- Ampere Rating 200 A
- Mounting Bolted
- Fuse Size 31
- Speed/Characteristic aR
- Rated voltage AC IEC 690 V
- Rated voltage AC UL 700 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
V300697 Description
V300697 Mersen - Square Body High-Speed Fuse Protistor® Size 31 aR 690VAC IEC 700VAC UL 200A With Striker Slotted Blades long
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
Related documents V300697 Specs
