V300237 Mersen Fuses
Part#:V300237
Manufacturer:Mersen
Category:Fuses
Alt. Part#:3605340325478
Product Lifecycle:Active
Get a quick Quote!

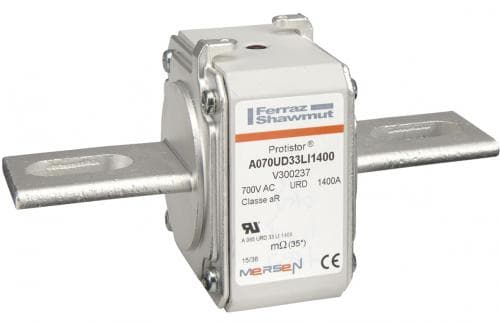

V300237 Mersen - Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 1400A With Striker Slotted Blades long
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the V300237 Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 1400 A
- Terminal Type Slotted Blades
- Weight 877.582 g
- Trip Class High Speed
- Country Of Origin MX,FR
- Fuse Class Semiconductor
- Sell Pack Length 9.65 in
- Sell Pack Width 5.71 in
- Sell Pack Height 3.54 in
- Sell Pack Quantity 3 EACH
- Sell Pack Weight 5.589 lb
- Product Height 3.09 in
- Product Length 5.28 in
- Connection/Terminal Material Silver-Plated Copper
- Connection/Terminal Type Slotted Blades
- Body/Insulating Material Ceramic
- Product Weight 1.863 lb
- Product Width 2.87 in
- Indication System Yes
- Indication System Type Striker
- Design Details Reinforced Terminal
- AC Max I.R./Breaking Capacity: I1 200 kA
- Power Dissipation at Rated Current Value 200 W
- Rated voltage AC UL 700 V
- Clearing I2t At Rated Voltage 2700 kA²s
- Rated voltage AC IEC 690 V
- Speed/Characteristic aR
- Melting I2t 465 kA²s
- Fuse Size 33
- Ampere Rating 1400 A
- Mounting Bolted
- Catalogue No. A070UD33LI1400
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
V300237 Description
V300237 Mersen - Square Body High-Speed Fuse Protistor® Size 33 aR 690VAC IEC 700VAC UL 1400A With Striker Slotted Blades long
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
