V300053 Mersen Fuses

Name: V300053
Brand: Mersen
Price: 724.61 USD
Availability: BackOrder

Part#:V300053

Manufacturer:Mersen

Category:Fuses

Alt. Part#:3605340322774

Product Lifecycle:Active

Get a quick Quote!

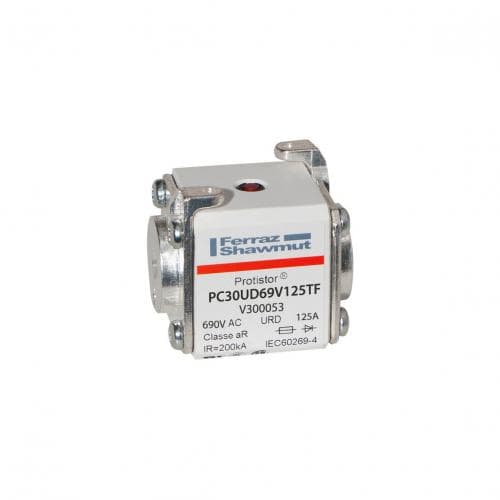

V300053 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 125A With Striker Flush ends metric threads

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the V300053 Mersen price in the box on the right side or send a quick quote.

Product Details

Current Rating
125 A
Terminal Type
End Contact with Threaded Holes
Weight
246.522 g
Trip Class
High Speed
Country Of Origin
FR
Fuse Class
Semiconductor
Sell Pack Length
5.31 in
Sell Pack Height
2.17 in
Sell Pack Width
3.35 in
Sell Pack Weight
1.629 lb
Sell Pack Quantity
3 EACH
Product Width
1.57 in
Product Height
1.89 in
Product Weight
0.543 lb
Product Length
1.99 in
Body/Insulating Material
Ceramic
Connection/Terminal Material
Silver-Plated Brass
Connection/Terminal Type
End Contact with Threaded Holes
Power Dissipation at Rated Current Value
30 W
Indication System Type
Striker

Indication System

Yes

AC Max I.R./Breaking Capacity: I1

200 kA

Mounting

Bolted

Speed/Characteristic

Rated voltage AC UL

700 V

Melting I2t

0.85 kA²s

Catalogue No.

PC30UD69V125TF

Clearing I2t At Rated Voltage

4.9 kA²s

Fuse Size

Rated voltage AC IEC

690 V

Ampere Rating

125 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

V300053 Description

V300053 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 125A With Striker Flush ends metric threads

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability
