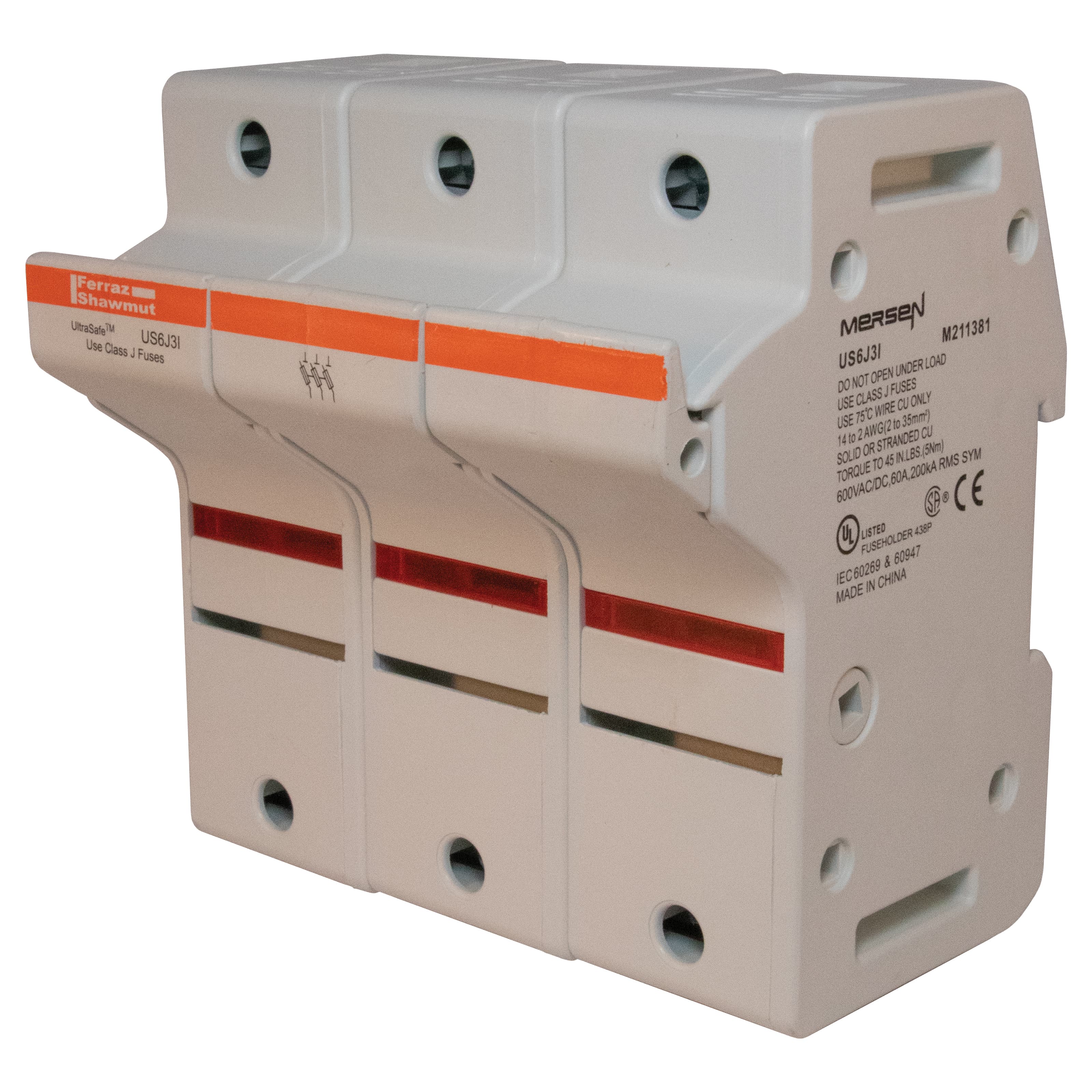

US6J3I Mersen Fuse Holders
Part#:US6J3I
Manufacturer:Mersen
Category:Fuse Holders
Alt. Part#:782001830915
Product Lifecycle:Active
Get a quick Quote!
US6J3I Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class J 60A 3-Pole LED Pressure Plate IP65
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the US6J3I Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 3 Pole
- Current Rating 60 A
- Weight 830.82 g
- Voltage 600 VAC
- Sell Pack Length 10.24 in
- Sell Pack Height 3.74 in
- Sell Pack Width 5.12 in
- Sell Pack Quantity 2 Each
- Sell Pack Weight 3.84 lb
- Product Width 4.72 in
- Product Height 3.5 in
- Product Length 4.8 in
- Product Weight 1.83 lb
- Fuse Installation Method Clip-in
- Installation Mounting DIN Rail
- Max Fuse Rating 60 A
- Body/Insulating Material Polyamide
- Wiring range #2 to 14 AWG
- Number of Poles 3-pole
- Ampere Rating 60 A
- Indication System Type LED
- Indication System Yes
- Short Circuit Current Rating (SCCR) 200
- ROHS Compliant Yes
- Fuse Type/Class Class J
- Fuse Class Class J
- Rated voltage AC UL 600 V
- Rated voltage DC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
US6J3I Description
US6J3I Mersen - Fuse Holder UltraSafe™ 600VAC 600VDC Class J 60A 3-Pole LED Pressure Plate IP65 | Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe” to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. The US6J is for 60A Class J fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units, with or without blown-fuse indicators in each pole. Multi-pole units can also be made up in the field by using the multiplepole Assembly Kits. All units have provisions for locking in the open position for safety during fuse changeouts or equipment servicing. US3J and US6J holders can be snap-mounted to 35 mm DIN-rail and they have a unique latch which will stay open to allow re-positioning of the holder in the future. UltraSafe body material is tough and durable polyamide.
*Holder not UL listed when installed with French Ferrule fuses.
RECOMMENDED FUSE USAGE:
*US3J, US6J use with AJT, A4J, HSJ | Features: *Finger-safe IP20 protection
*Optional indicator lights
*DIN-rail mount
*Compact footprint
*Quick, easy fuse change | Application: *600 volt motors, transformers, lighting, heating, control circuits, general loads
*Non-load disconnect
Related documents US6J3I Specs
