U70508 Mersen Fuse Holders

Name: U70508
Brand: Mersen
Price: 160.48 USD
Availability: BackOrder

Part#:U70508

Alt. Part#:782001323608

Manufacturer:Mersen

Category:Fuse Holders

Product Lifecycle:Active

Product description

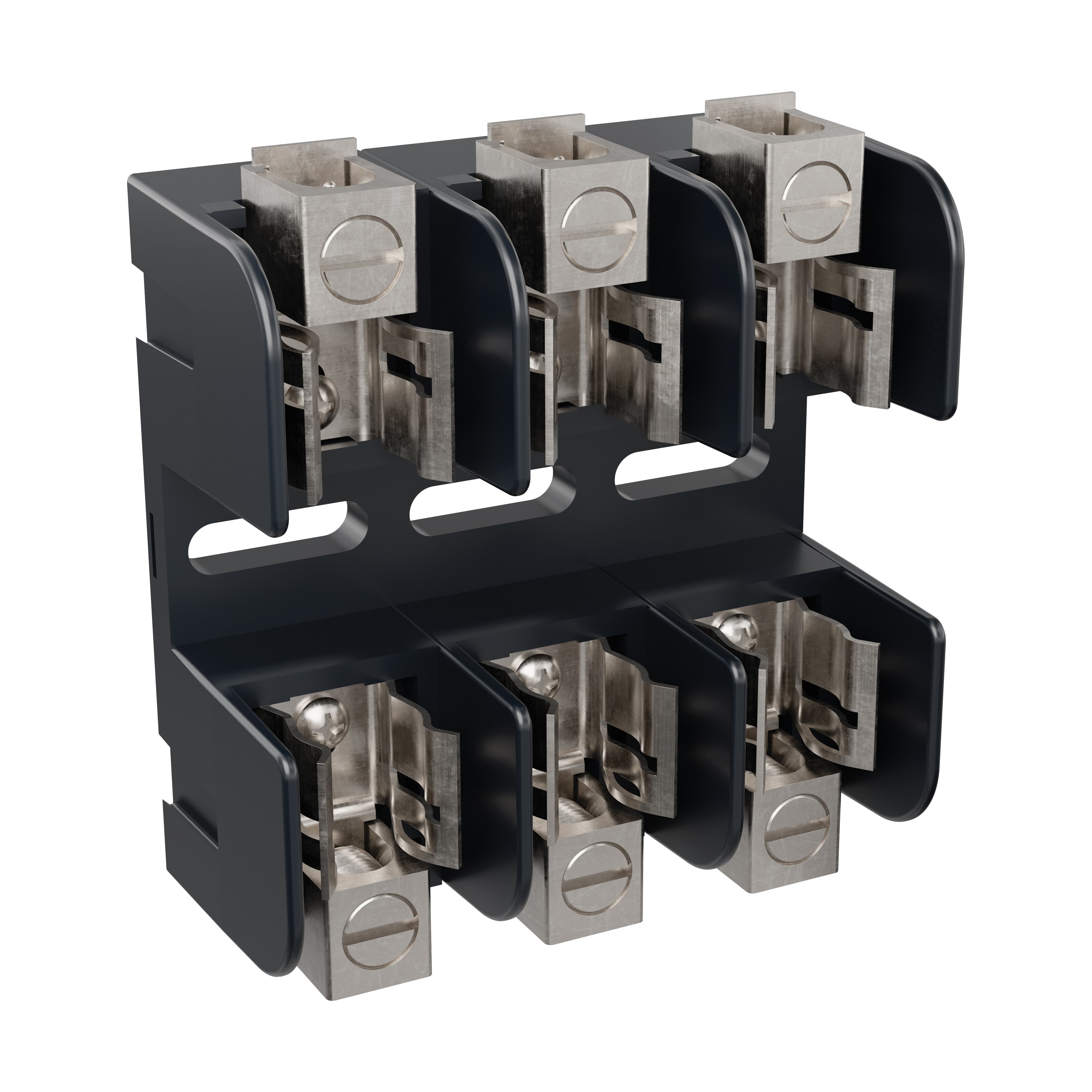

U70508 Mersen - Fuse Block 750VAC 750VDC 50A 3-Pole Box

Product Details

Number of Poles
3 Pole
Current Rating
50 A
Weight
154.36 g
Voltage
750 VAC
Sell Pack Width
3.12 in
Sell Pack Height
3 in
Sell Pack Length
10.62 in
Sell Pack Weight
1.79 lb
Product Height
1.37 in
Sell Pack Quantity
5 Each
Product Weight
0.34 lb
Product Width
3 in
Product Length
3 in
Installation Mounting
Screw Mount or DIN Rail
Max Fuse Rating
50 A
Torque Rating
35 lb-in
Body/Insulating Material
Thermoplastic
Fuse Installation Method
Clip-in
Ampere Rating
50 A
Rated voltage DC UL
750 V

ROHS Compliant

Yes

Frequency

50/60 Hz

Wiring range

Al/Cu #2-14

Short Circuit Current Rating (SCCR)

200 kA

Rated voltage AC UL

750 V

Fuse Type/Class

Semiconductor

Number of Poles

3-pole

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of U70508 on Advantage Electric Supply is $160.48. Order now.

U70508 Description

U70508 Mersen - Fuse Block 750VAC 750VDC 50A 3-Pole Box | Mersen Semiconductor fuse blocks feature open face styles. Each version is rated 750 volts and accommodates 14 x 51mm or 22 x 58mm IEC Cylindrical fuses. 703, U705 and U710 fuseholders feature Mersen's unique adder-block design which can be assembled onto 1, 2, or 3-pole fuseholders to form multi-pole segmented holders of as many poles as desired. A choice of box, screw, or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strength in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatility. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips. | Features: *Thermoplastic bases

*DIN-rail (U710) or Screw Mount

*Adder block design | Application: *All circuits up to 750 volts using semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.
