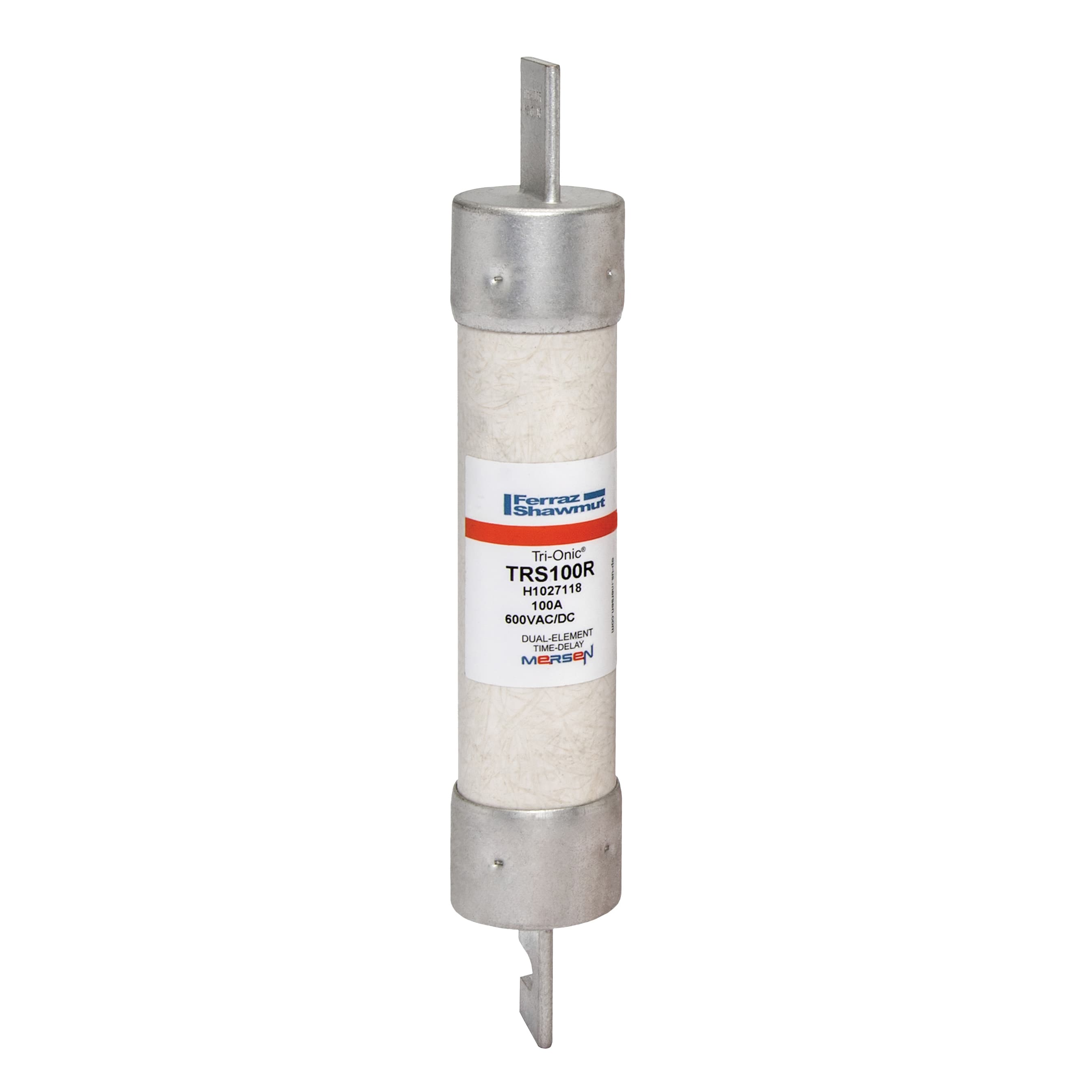

TRS100R Mersen Fuses
Part#:TRS100R
Manufacturer:Mersen
Category:Fuses
Alt. Part#:782001749118
Product Lifecycle:Active
Get a quick Quote!
TRS100R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 100A Blade Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TRS100R Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 100 A
- Terminal Type Blade
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 284.798 g
- Voltage 600 VAC / 600 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- TS PIK: 528425
- Approval: UL 248-12
- Type: Class RK5
- Characteristics: Time Delay
- Diameter: 1-5/16 Inch
- Time Delay: Voltage Rating
- Length: 7-7/8 Inch
- Shipping Weight: 0.60 lbs.
- Interrupting Rating: 200 kA (AC)
- Amps: 32 A
- Terminal Type: Blade
- Volts: 600 VAC/DC
- Shipping Height: 2.00 In.
- Shipping Width: 2.00 In.
- UPC: 78200174911
- Shipping Length: 8.00 In.
- Series: TRS-R
- Sell Pack Length 8 in
- Sell Pack Height 1.38 in
- Sell Pack Width 6.66 in
- Sell Pack Weight 3.57 lb
- Sell Pack Quantity 5 Each
- Product Length 7.88 in
- Product Diameter 1.31 in
- Product Weight 0.68 lb
- Body/Insulating Material PolyTube
- AC Max I.R./Breaking Capacity: I1 200 kA
- Connection/Terminal Type Blade
- Speed/Characteristic Time Delay
- Connection/Terminal Material Tin-Plated Copper
- Mounting Clip
- Frequency 50/60 Hz
- Fuse Class Class RK5
- Ampere Rating 100 A
- Rated voltage AC UL 600 V
- Rated voltage DC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TRS100R Description
TRS100R Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 100A Blade Tri-Onic®
Related documents TRS100R Specs
