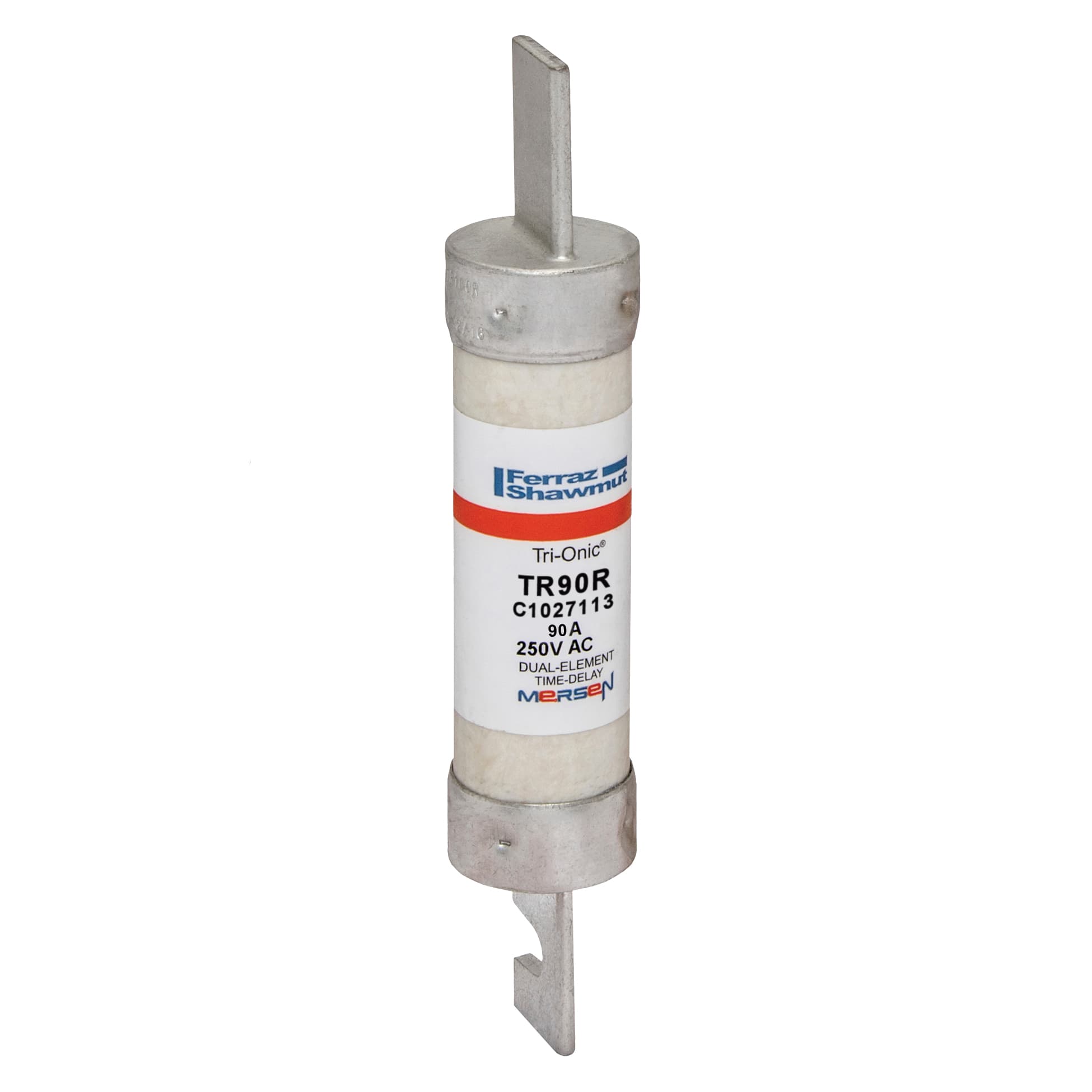

TR90R Mersen Fuses

TR90R on Advantage Electric Supply
Mersen

Part#:TR90R

Manufacturer:Mersen

Category:Fuses

Alt. Part#:782001748005

Product Lifecycle:Active

Get a quick Quote!

TR90R Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 90A Blade Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TR90R Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    90 A
  • Terminal Type
    Blade
  • Material
    PolyTube
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    137.4105 g
  • Voltage
    250 VAC / 250 VDC
  • Approvals
    *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Shipping Length:
    6.00 In.
  • UPC:
    78200174800
  • Shipping Width:
    1.00 In.
  • Shipping Weight:
    0.30 lbs.
  • Shipping Height:
    1.00 In.
  • Sell Pack Width
    5.38 in
  • Sell Pack Weight
    1.84 lb
  • Sell Pack Quantity
    5 Each
  • Product Length
    5.88 in
  • Sell Pack Height
    1.06 in
  • Sell Pack Length
    6 in
  • Connection/Terminal Type
    Blade
  • Product Weight
    0.35 lb
  • Product Diameter
    0.06 in
  • Body/Insulating Material
    PolyTube
  • Connection/Terminal Material
    Tin-Plated Copper
  • Frequency
    50/60 Hz
  • Rated voltage AC UL
    250 V
  • Ampere Rating
    90 A
  • ROHS Compliant
    Yes
  • Fuse Class
    Class RK5
  • Speed/Characteristic
    Time Delay
  • Rated voltage DC UL
    250 V
  • Mounting
    Clip
  • AC Max I.R./Breaking Capacity: I1
    200 kA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

TR90R Description

TR90R Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 90A Blade Tri-Onic®

Related documents TR90R Specs

TR90R 27EE50C37529491892B07A72781DB85B-1en.pdf
