TR70RID Mersen Fuses
Part#:TR70RID
Manufacturer:Mersen
Alt. Part#:782001415310
Product Lifecycle:Active
Get a quick Quote!

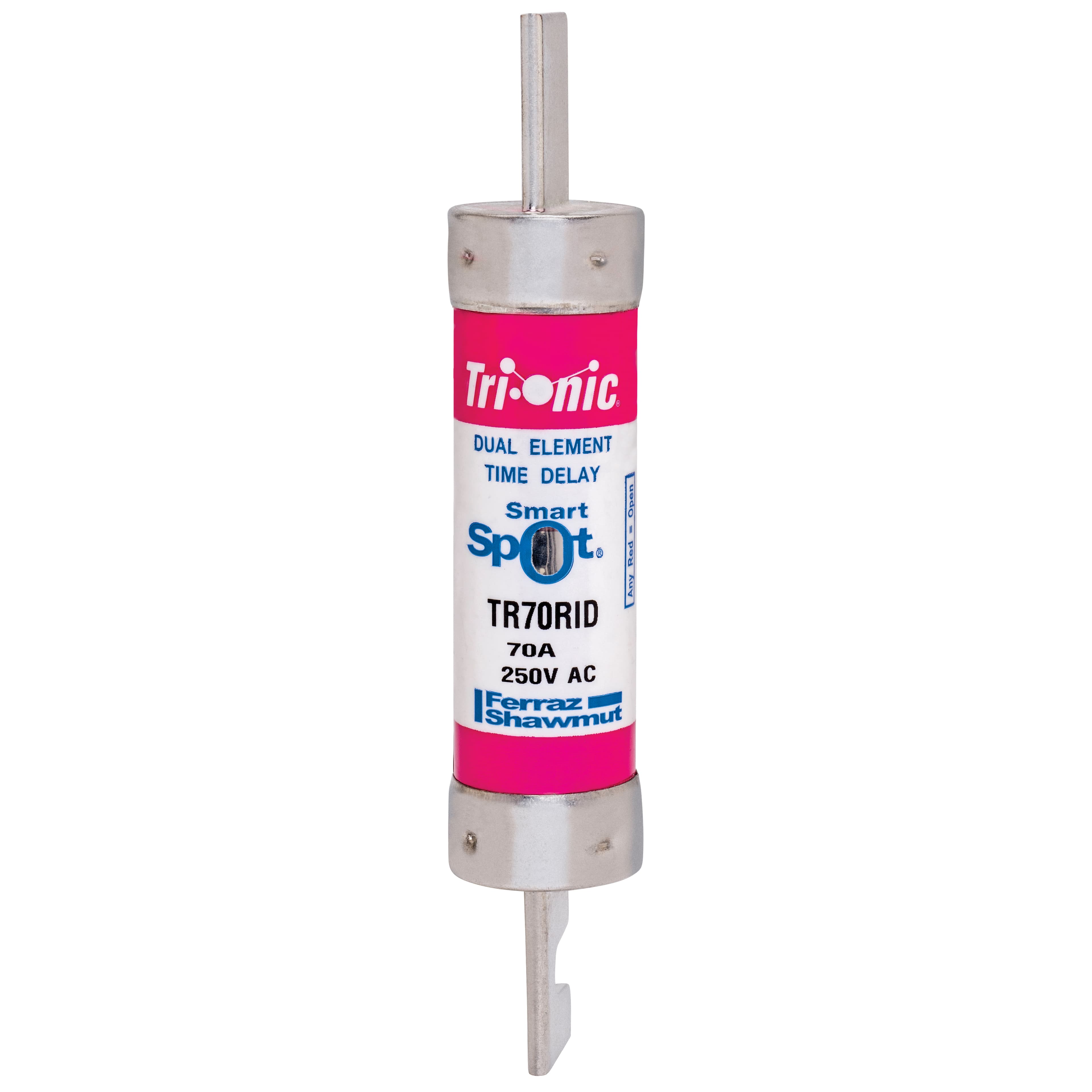

TR70RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 70A Blade SmartSpot® Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TR70RID Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 70 A
- Terminal Type Blade
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 137.4105 g
- Voltage 250 VAC / 250 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Sell Pack Weight 1.84 lb
- Sell Pack Width 5.38 in
- Sell Pack Quantity 5 Each
- Sell Pack Height 1.06 in
- Product Length 5.88 in
- Product Diameter 1.06 in
- Sell Pack Length 6 in
- Body/Insulating Material PolyTube
- Product Weight 0.35 lb
- Connection/Terminal Type Blade
- Connection/Terminal Material Tin-Plated Copper
- Indication System Yes
- Indication System Type SmartSpot®
- AC Max I.R./Breaking Capacity: I1 200 kA
- Ampere Rating 70 A
- Speed/Characteristic Time Delay
- Rated voltage DC UL 250 V
- ROHS Compliant Yes
- Fuse Class Class RK5
- Mounting Clip
- Rated voltage AC UL 250 V
- Frequency 50/60 Hz
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TR70RID Description
TR70RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 70A Blade SmartSpot® Tri-Onic®
Related documents TR70RID Specs
