TR300RID Mersen Fuses
Part#:TR300RID
Manufacturer:Mersen
Alt. Part#:782001415426
Product Lifecycle:Active
Get a quick Quote!

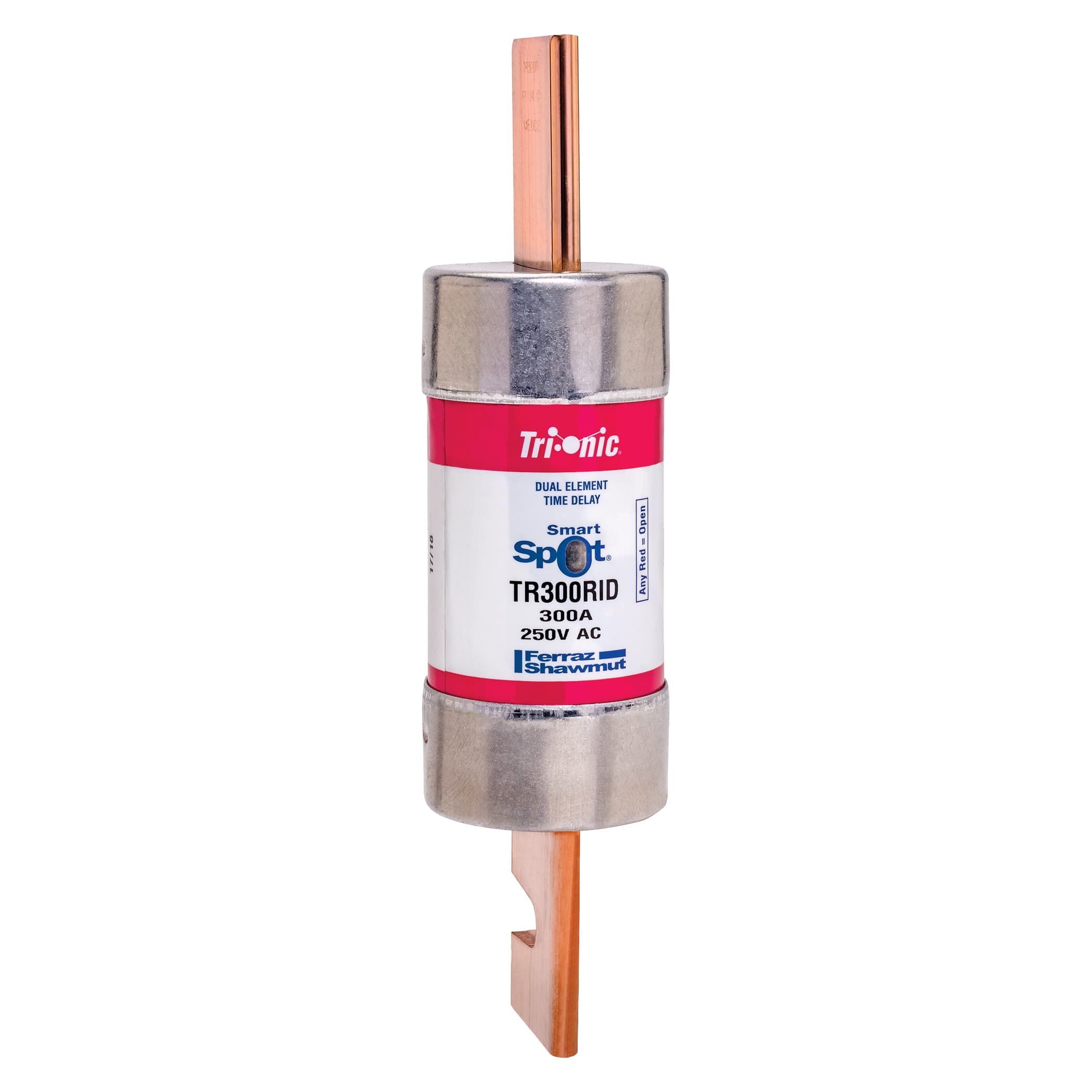

TR300RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 300A Blade SmartSpot® Tri-Onic®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the TR300RID Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 300 A
- Terminal Type Blade
- Material PolyTube
- Type Low Voltage UL/CSA Fuses
- Weight 743.74 g
- Voltage 250 VAC / 250 VDC
- Approvals *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class RK5
- Sell Pack Height 8.81 in
- Sell Pack Length 2.12 in
- Sell Pack Quantity 1 Each
- Sell Pack Width 2.12 in
- Sell Pack Weight 1.89 lb
- Product Length 8.63 in
- Product Weight 1.8 lb
- Product Diameter 2.06 in
- Body/Insulating Material PolyTube
- Connection/Terminal Type Blade
- Connection/Terminal Material Tin-Plated Copper
- Indication System Type SmartSpot®
- Indication System Yes
- Speed/Characteristic Time Delay
- Mounting Clip
- Rated voltage DC UL 250 V
- Frequency 50/60 Hz
- Fuse Class Class RK5
- Ampere Rating 300 A
- AC Max I.R./Breaking Capacity: I1 200 kA
- ROHS Compliant Yes
- Rated voltage AC UL 250 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
TR300RID Description
TR300RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 300A Blade SmartSpot® Tri-Onic®
Related documents TR300RID Specs
