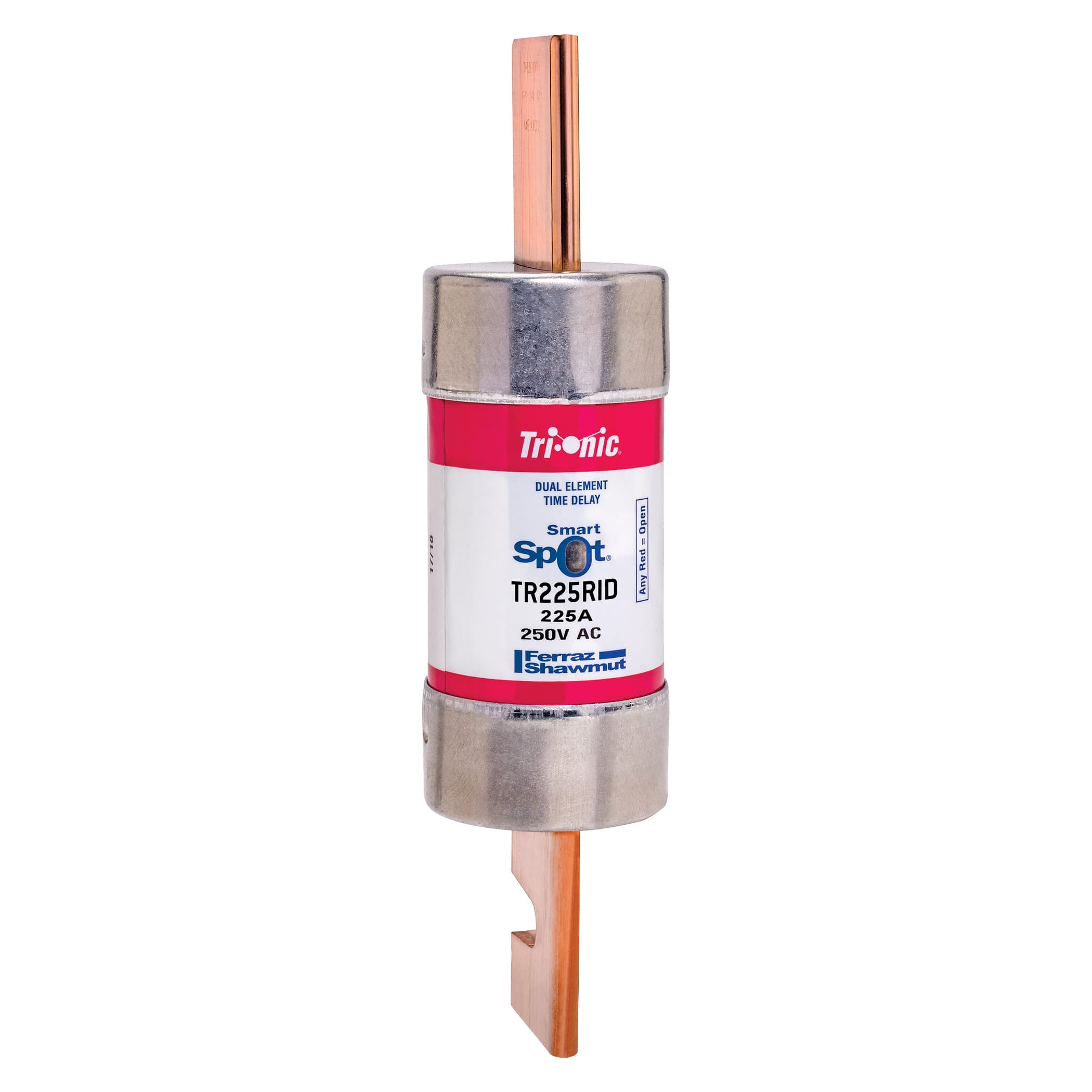

TR225RID Mersen Fuses

Mersen TR225RID TR225RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 225A Blade SmartSpot® Tri-Onic®
Mersen

Part#:TR225RID

Manufacturer:Mersen

Alt. Part#:782001415402

Product Lifecycle:Active

Get a quick Quote!

TR225RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 225A Blade SmartSpot® Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TR225RID Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    225 A
  • Terminal Type
    Blade
  • Material
    PolyTube
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    743.74 g
  • Voltage
    250 VAC / 250 VDC
  • Approvals
    *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Sell Pack Height
    8.81 in
  • Sell Pack Width
    2.12 in
  • Sell Pack Length
    2.12 in
  • Sell Pack Weight
    1.89 lb
  • Sell Pack Quantity
    1 Each
  • Product Length
    8.63 in
  • Product Diameter
    2.06 in
  • Connection/Terminal Material
    Tin-Plated Copper
  • Body/Insulating Material
    PolyTube
  • Connection/Terminal Type
    Blade
  • Indication System Type
    SmartSpot®
  • Product Weight
    1.8 lb
  • Speed/Characteristic
    Time Delay
  • Indication System
    Yes
  • Frequency
    50/60 Hz
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Rated voltage AC UL
    250 V
  • ROHS Compliant
    Yes
  • Ampere Rating
    225 A
  • Rated voltage DC UL
    250 V
  • Mounting
    Clip
  • Fuse Class
    Class RK5

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TR225RID Description

TR225RID Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 225A Blade SmartSpot® Tri-Onic®
