T219805 Mersen Fuse Holders
Part#:T219805
Manufacturer:Mersen
Alt. Part#:8430399000992
Product Lifecycle:Active
Get a quick Quote!

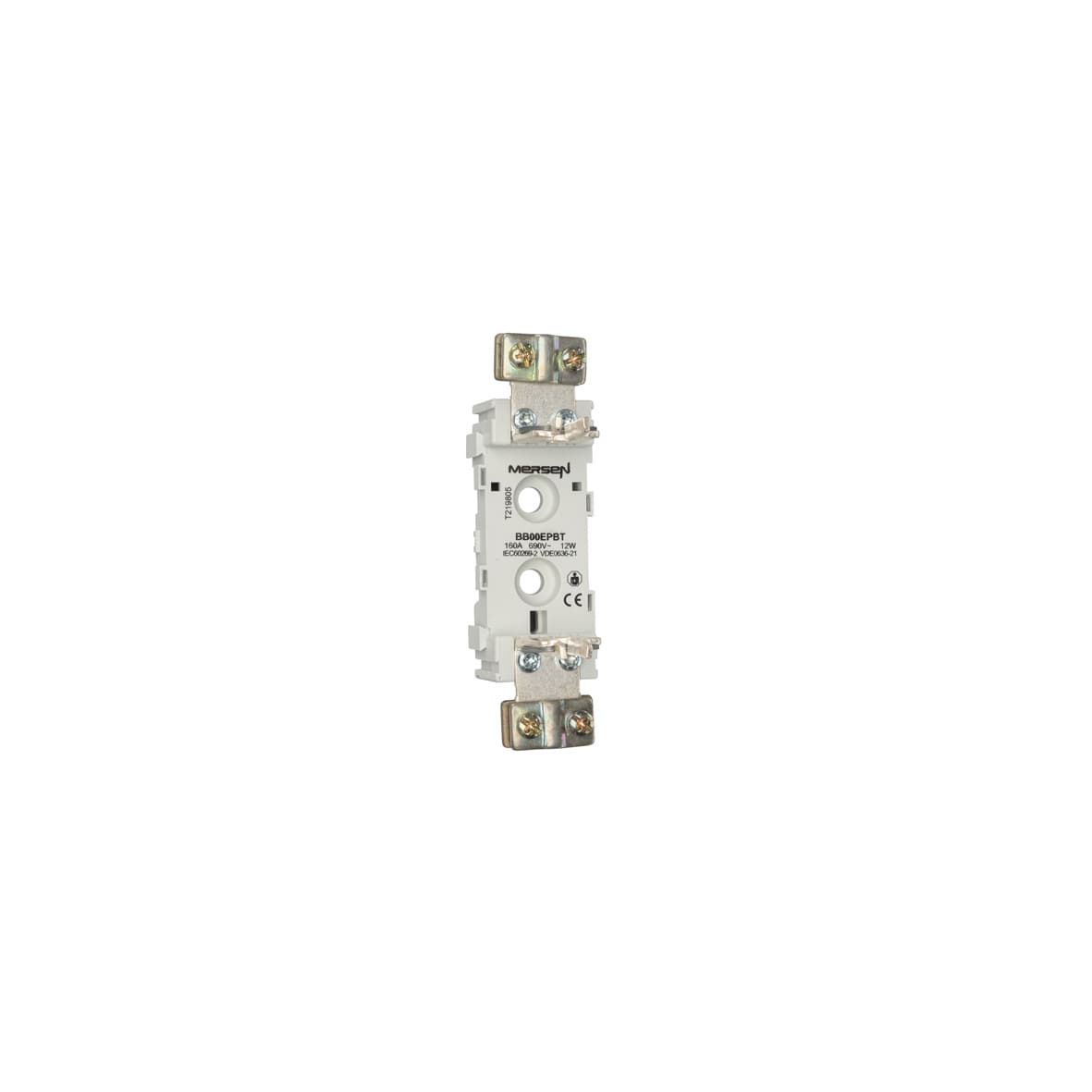

T219805 Mersen - NH plastic base Size NH00 1000VAC 1000VDC 160A 1-Pole Screw Connection Clamp Strap EP Type
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the T219805 Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 1 Pole
- Current Rating 160 A
- Weight 130.298 g
- Sell Pack Width 4.92 in
- Sell Pack Height 2.56 in
- Sell Pack Length 5.2 in
- Sell Pack Weight 0.86 lb
- Product Weight 0.287 lb
- Sell Pack Quantity 3 EACH
- Product Height 4.76 in
- Product Length 2.13 in
- Product Width 1.42 in
- Power Acceptance 12 W
- Installation Mounting Screw
- Number of Poles 1-Pole
- Design Details Type EP (square contacts)
- Rated voltage DC IEC 440 V
- ROHS Compliant Yes
- Ampere Rating 160 A
- Torque Rating 34.52 lb-in
- Fuse Size NH00
- Rated voltage AC IEC 690 V
- Catalogue No. BB00EPBT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
T219805 Description
T219805 Mersen - NH plastic base Size NH00 1000VAC 1000VDC 160A 1-Pole Screw Connection Clamp Strap EP Type | NH fuse-bases are available for delivery in single-pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is upplied with two phase-partition walls. NH fuse-links plugon covers which clip onto the contact springs can also be supplied for these bases.
Plastic fuse-bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases.
The stable silver-plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse-bases are designed for size 4 fuse-links with 8 mm contact blades.
A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse-links with striker, it operates when fuse melts or where there is no fuse-link.
Indirect touch protection fuse bases: no microswitch possible.
Rated impulse withstand voltage Uimp: 6kV / 8kV (sizes 00 / 0-4) | Features: *Polyamide insulating bases
*Silver-plated contacts
*High-pressure spring contacts
*Screw or rail mounting
*Connecting cable: 50mm
*Multipolar bases possible by direct linkage in 00 size and with separator accessory in sizes 0, 1, 2 and 3
*Variety of options for protecting active parts through use of accessories: separating plates, separator, cover shields and fuse cover
*Dual cable-connection system on 00 size: by screw or clamp | Application: *For fuse-links with rated voltages up to 1000VAC and 1000VDC
Related documents T219805 Specs
