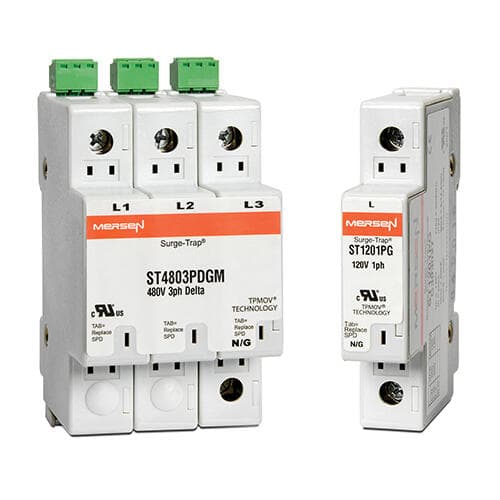

ST4803PY Mersen Electronic Components

Product Details

• Sell Pack Quantity
  1 Each
• Sell Pack Length
  4.88 in
• Sell Pack Height
  2.75 in
• Sell Pack Width
  2.88 in
• Product Height
  2.7 in
• Product Length
  3.58 in
• VPR L-G
  1500 V
• Product Width
  2.1 in
• MOV Response Time
  <25 ns
• VPR L-N
  1000 V
• VPR N-G
  500 V
• VPR L-L
  1800 V
• Product Weight
  0.85 lb
• MCOV L-N
  320 V
• MCOV L-L
  640 V
• MCOV N-G
  150 V
• MCOV L-G
  470 V
• Number of Wires
  5 Wire
• Installation Mounting
  DIN Rail
• Housing Material
  PET (Polyethelene Terphthalate)
Connection/Terminal Material
Zinc-Plated Steel
Connection/Terminal Type
Box
Indication System
Yes
Number of Poles
3-pole
Wiring range
#6 to #14 AWG
Short Circuit Current Rating (SCCR)
200 (most models) kA
Max Discharge Current : Imax (8/20)
50 kA per phase
ROHS Compliant
Yes
System Configuration
3-Phase Wye
Indication System Type
Visual Indicator
Nominal Operating Volt Rating (Un)
480Y/277 V
Protection Modes
L-G, L-L, L-N, N-G
AC or DC
AC
UL SPD Type
Type 1 Component Assembly
Nominal Discharge Current (In) (8/20)
20 kA
