R331031 Mersen Fuse Holders

Name: R331031
Brand: Mersen
Price: 323.34 USD
Availability: BackOrder

Part#:R331031

Manufacturer:Mersen

Category:Fuse Holders

Alt. Part#:8430399000138

Product Lifecycle:Active

Get a quick Quote!

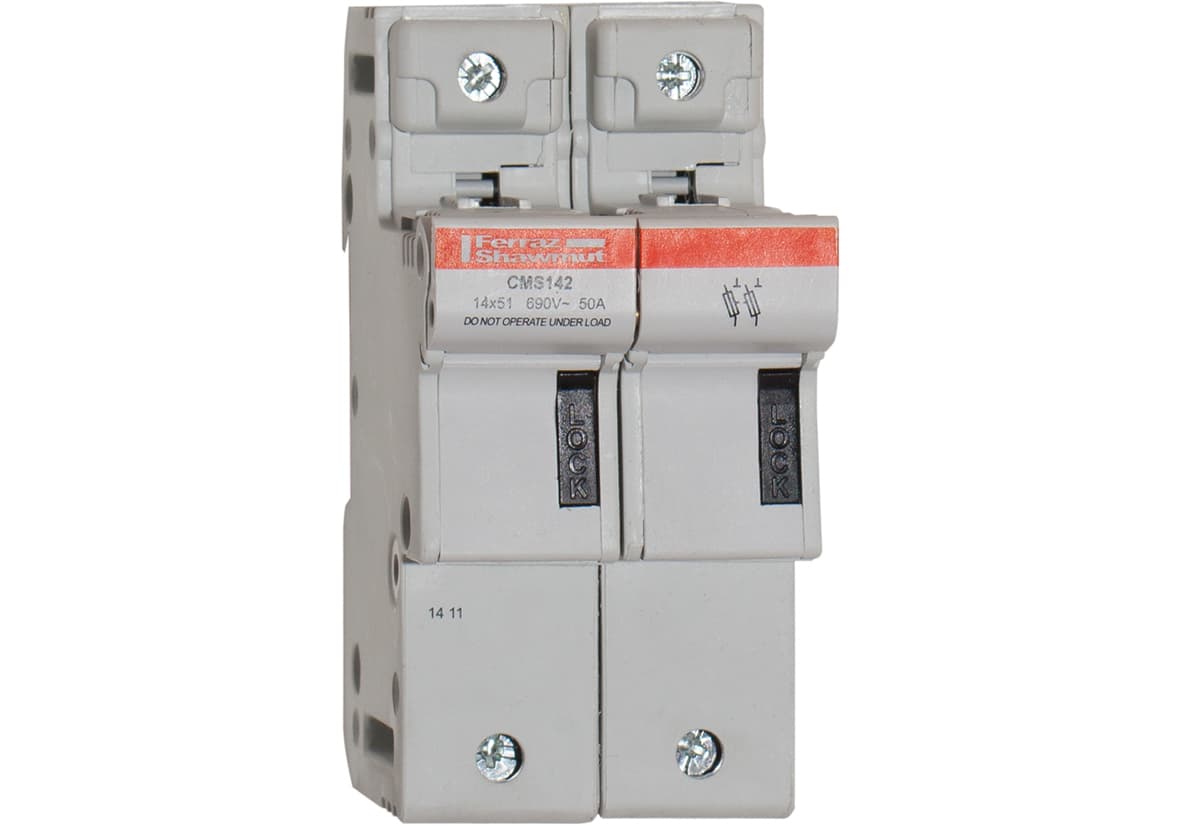

R331031 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC 2-Pole IP20

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the R331031 Mersen price in the box on the right side or send a quick quote.

Product Details

Number of Poles
2 Pole
Current Rating
50 A
Weight
266.952 g
Sell Pack Length
6.46 in
Sell Pack Height
3.11 in
Sell Pack Width
4.45 in
Sell Pack Weight
1.763 lb
Product Height
4.36 in
Sell Pack Quantity
3 EACH
Product Weight
0.588 lb
Product Width
2.09 in
Installation Mounting
DIN rail acc. EN 60715
Product Length
3.01 in
Comments
Wiring tool : PZ2 or flat 5.5x1mm screw drivers recommended (max. diameter 6mm)
Rated Insulation Voltage
690 V
Conventional Free Air thermal Current With Fuse-Links Ith
50 A
Rated Impulse Withstand Voltage
8
Catalogue No.
CMS142
Rated voltage DC IEC
690 V
ROHS Compliant
Yes

Number of Poles

2-Pole

Rated voltage AC IEC

690 V

Torque Rating

30.98 lb-in

Ampere Rating

50 A

Short Circuit Current Rating (SCCR)

100 kA

Fuse Size

14x51

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

R331031 Description

R331031 Mersen - Fuse Holder Modulostar® Size 14x51 IEC 690VAC 690VDC 2-Pole IP20 | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe

*Degree of protection: IP20

*Optional visual blown fuse indicator

*DIN rail mounting

*Modular design

*Lockable

*Multi-pole assembly kit available

*Sealable in closed and open position

*Plastic material UL94V2 mini

*Flame retardant materials with glow wire flammability index to 960°C

*Shock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers,

*low voltage distribution, control circuits, drive protection

*Non-load operation
