G301329 Mersen Fuses
Product Details
- Current Rating 250 A
- Terminal Type End Contact with Threaded Holes
- Weight 735.48 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Melting I2t 8.6 kA²s
- Speed/Characteristic gR
- Connection/Terminal Material Silver-Plated Brass
- Connection/Terminal Type End Contact with Threaded Holes
- Mounting Bolted
- Product Weight 1.62 lb
- AC Max I.R./Breaking Capacity: I1 150 kA
- Indication System Type Striker
- Sell Pack Width 4.33 in
- Clearing I2t At Rated Voltage 50 kA²s
- Indication System Yes
- Sell Pack Height 3.15 in
- Ampere Rating 250 A
- Power Dissipation at Rated Current Value 49 W
- Sell Pack Weight 4.861 lb
- Catalogue No. PC72GB69V250TF
- Product Width 2.32 in
- Product Height 2.48 in
- Rated voltage AC IEC 690 V
- Product Length 2.91 in
- Sell Pack Quantity 3 EACH
- Sell Pack Length 5.12 in
- Fuse Size 72
- Body/Insulating Material Ceramic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

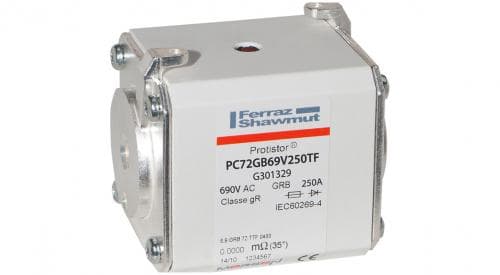

G301329 Mersen - Square Body High-Speed Fuse Protistor® Size 72 gR 690VAC IEC 250A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
The 690V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® gR have been engineered to provide full range protection to eliminate all overloads and short circuit fault. Each fuse is assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Excellent cycling capability
*Multiple body sizes and terminals or blades combination
*Extremely fast acting
*Eliminate all overloads
*Low I²t for improved semiconductor protection
*gR Class according to IEC 60269-4 and VDE 636-23
