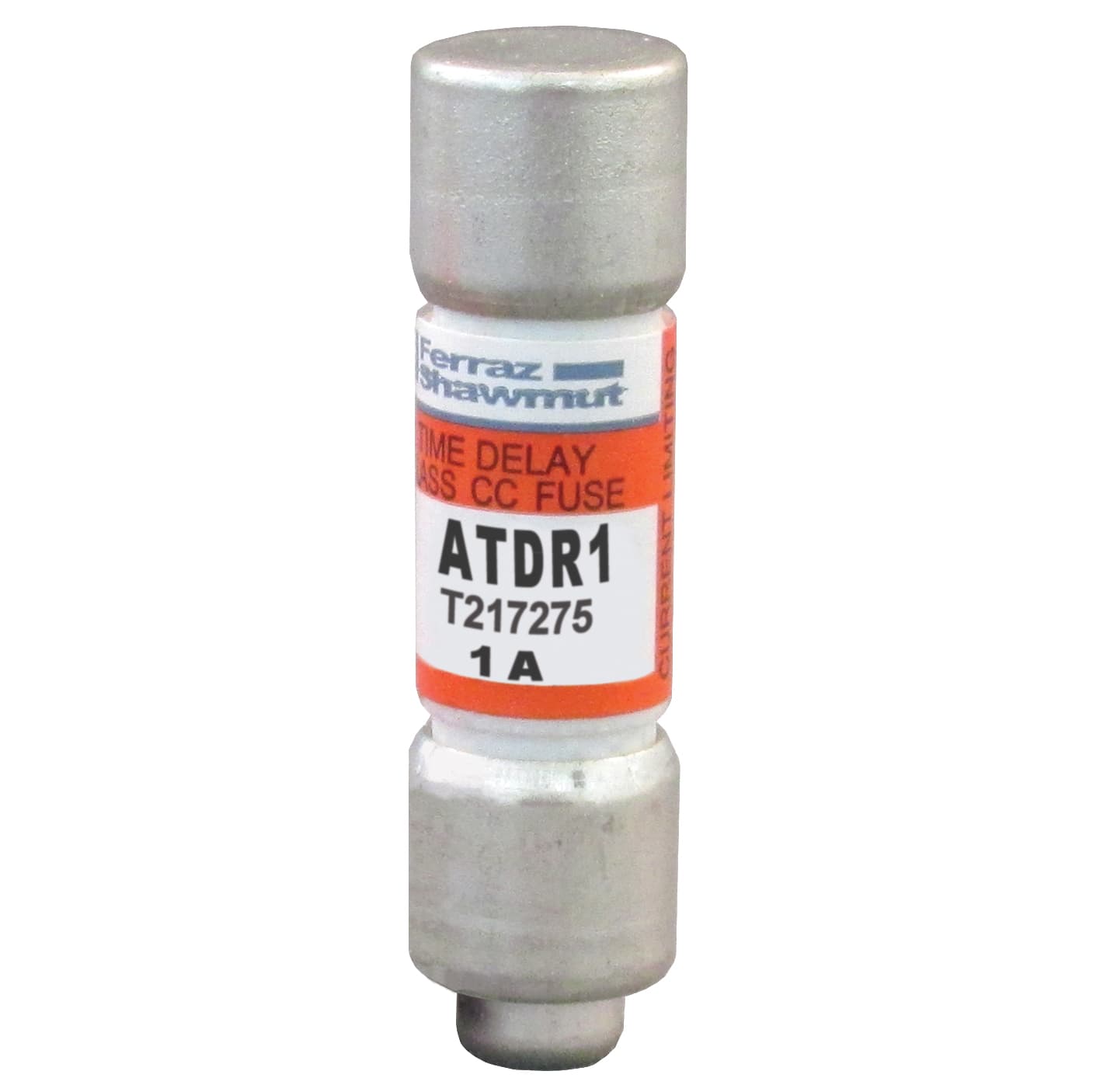

ATDR1 Mersen Fuses

Product Details

• Current Rating
  1 A
• Terminal Type
  Ferrule
• Material
  GMG
• Type
  Low Voltage UL/CSA Fuses
• Weight
  7.7095 g
• Voltage
  600 VAC / 300 VDC
• Approvals
  *UL listed to standard 248-4 File E2137 *CSA certified to standard C22.2 No. 248.4 *DC listed to UL standard 248
• UL Certification
  YES
• Trip Class
  Time Delay
• Fuse Class
  Class CC
• Shipping Width:
  2.00 In.
• Shipping Height:
  1.00 In.
• Shipping Weight:
  0.20 lbs.
• UPC:
  78200190092
• Shipping Length:
  2.00 In.
• Sell Pack Length
  1.62 in
• Sell Pack Height
  2.12 in
• Sell Pack Width
  0.88 in
• Sell Pack Weight
  0.21 lb
• Sell Pack Quantity
  10 Each
Product Length
1.5 in
Product Weight
0.02 lb
Product Diameter
0.41 in
Body/Insulating Material
GMG
Connection/Terminal Type
Ferrule
Connection/Terminal Material
Tin-Plated Copper
AC Max I.R./Breaking Capacity: I1
200 kA
Fuse Class
Class CC
Speed/Characteristic
Time Delay
Rated voltage DC UL
300 V
Frequency
50/60 Hz
Rated voltage AC UL
600 V
Ampere Rating
1 A
Mounting
Clip
