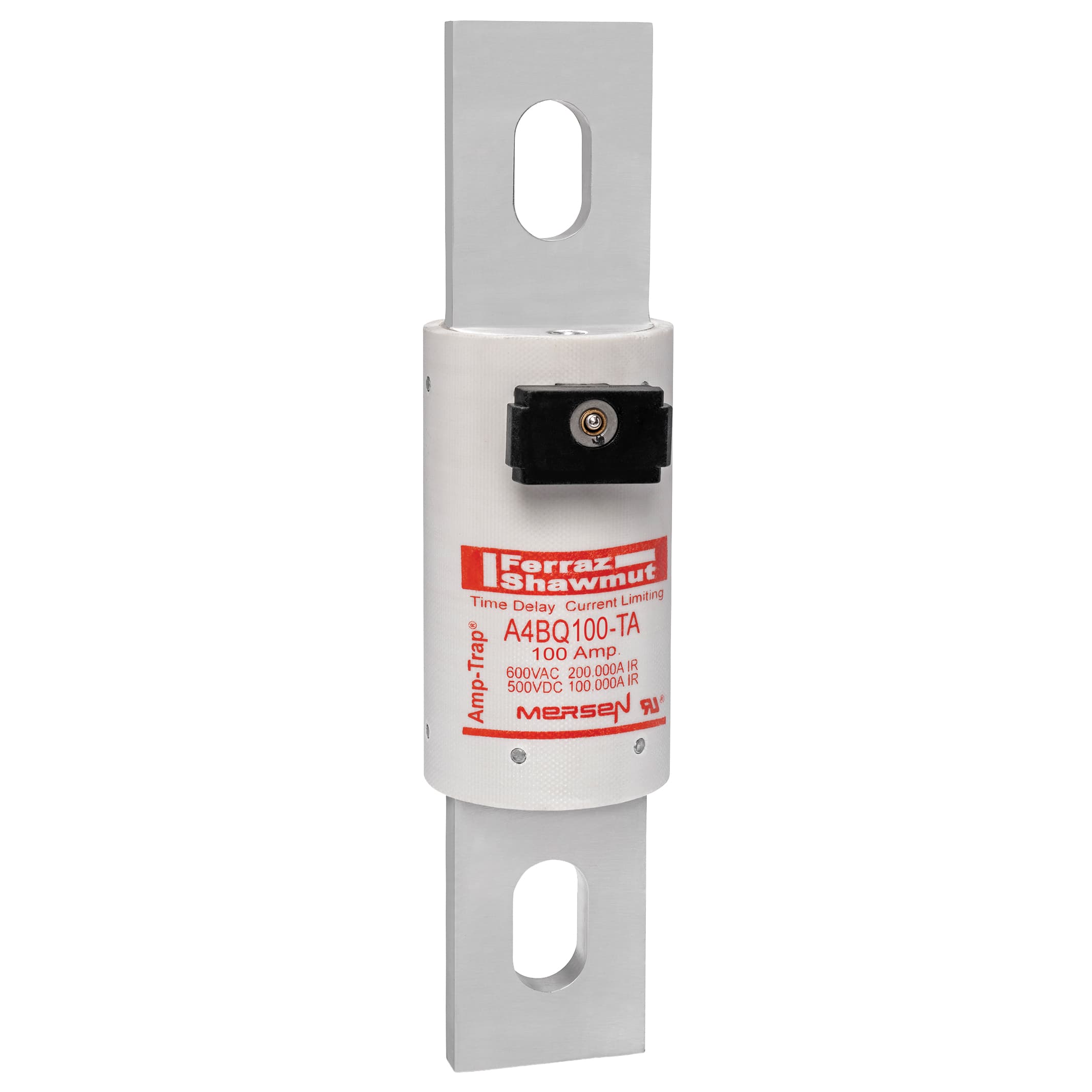

A4BQ100-TA Mersen Fuses
Part#:A4BQ100-TA
Manufacturer:Mersen
Alt. Part#:782001293888
Product Lifecycle:Active
Get a quick Quote!
A4BQ100-TA Mersen - Fuse A4BQ - Class L - Time-Delay 600VAC 500VDC 100A Blade TA Indicator Amp-Trap 2000®
About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the A4BQ100-TA Mersen price in the box on the right side or send a quick quote.
Product Details
- Current Rating 100 A
- Terminal Type Blade
- Material GMG
- Type Low Voltage UL/CSA Fuses
- Weight 1269.8 g
- Voltage 600 VAC / 500 VDC
- Approvals A4BQ (100-6000) *UL listed to standard 248-10 File E2137 *DC listed to UL standard 248 (100-2000A) *CSA certified to standard C22.2 No. 248.10 (601-6000A) A4BQ (100-6000) - TA *UL listed
- UL Certification YES
- Trip Class Time Delay
- Fuse Class Class L
- Sell Pack Weight 2.94 lb
- Sell Pack Quantity 1 Each
- Sell Pack Width 2.5 in
- Sell Pack Length 8.75 in
- Sell Pack Height 2.38 in
- Product Length 8.63 in
- Product Diameter 2 in
- Indication System Type TA Indicator
- Product Weight 2.8 lb
- Connection/Terminal Type Blade
- Body/Insulating Material GMG
- Connection/Terminal Material Silver-Plated Copper
- Rated voltage AC UL 600 V
- Speed/Characteristic Time Delay
- Ampere Rating 100 A
- Mounting Bolted
- Indication System Yes
- Fuse Class Class L
- AC Max I.R./Breaking Capacity: I1 200 kA
- ROHS Compliant Yes
- Rated voltage DC UL 500 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
A4BQ100-TA Description
A4BQ100-TA Mersen - Fuse A4BQ - Class L - Time-Delay 600VAC 500VDC 100A Blade TA Indicator Amp-Trap 2000®
Related documents A4BQ100-TA Specs
