A150C90-20 Mersen Fuses
Product Details
- Current Rating 90 A
- Terminal Type Male Stud To L Bracket
- Weight 1 lb
- Voltage 1500 VAC
- Country Of Origin MX
- Fuse Class Medium Voltage IEEE Fuses
- Indication System Yes
- Product Length 6.61 in
- Rated voltage AC UL 1500 V
- Product Height 3 in
- Connection/Terminal Material Tin-Plated Brass
- Body/Insulating Material GMG
- Sell Pack Length 8.25 in
- Connection/Terminal Type Male Stud To L Bracket
- Sell Pack Weight 2.1 lb
- Ampere Rating 90 A
- Mounting Direct Mount
- Product Weight 1 lb
- Sell Pack Height 2 in
- Indication System Type Visual Indicator
- Product Diameter 1.1 in
- Sell Pack Width 4.5 in
- ROHS Compliant Yes
- Product Width 1.25 in
- AC Max I.R./Breaking Capacity: I1 40 kA
- Sell Pack Quantity 2 Each
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

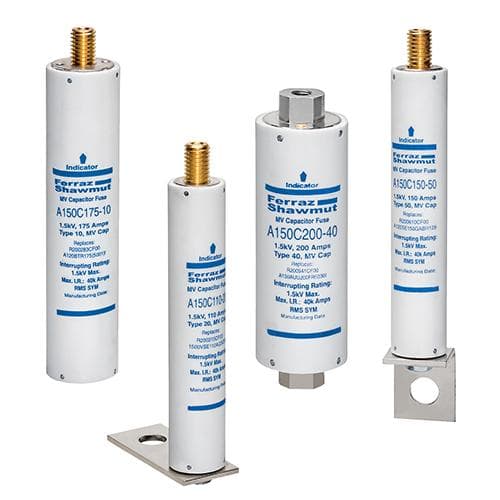

A150C90-20 Mersen - Medium Voltage Capacitor Fuse 1500VAC 90A Male Stud To L Bracket Visual Indicator Amp-Trap®
Mersen capacitor fuses are designed to ANSI C37-41. They are current-limiting operating without noise or discharge and are designed to be used indoors or outdoors in a weatherproof enclosure. These are non-disconnecting fuses requiring the usage of a disconnect switch. These capacitor fuses provide both short circuit and overload protection and are intended to protect against capacitor case rupture or dielectric failure within the capacitor.
The various mounting configurations offer manufacturers a wide range of cost and space saving solutions and a large choice of equivalent products to users.
*High interrupting capacity
*Current-limiting
*Blown fuse indicator
*Direct mounting
*Clip style mounting
*Bus mounting
*Non-venting for silent operation
*Protection of capacitors
*Power Factor Correction Equipment
*Harmonic Filtering Equipment
*Induction Heating System
*High Power Drive
*Welder
