60308R Mersen Fuse Holders

Name: 60308R
Brand: Mersen
Price: 173.41 USD
Availability: BackOrder

Part#:60308R

Manufacturer:Mersen

Alt. Part#:782001759599

Product Lifecycle:Active

Get a quick Quote!

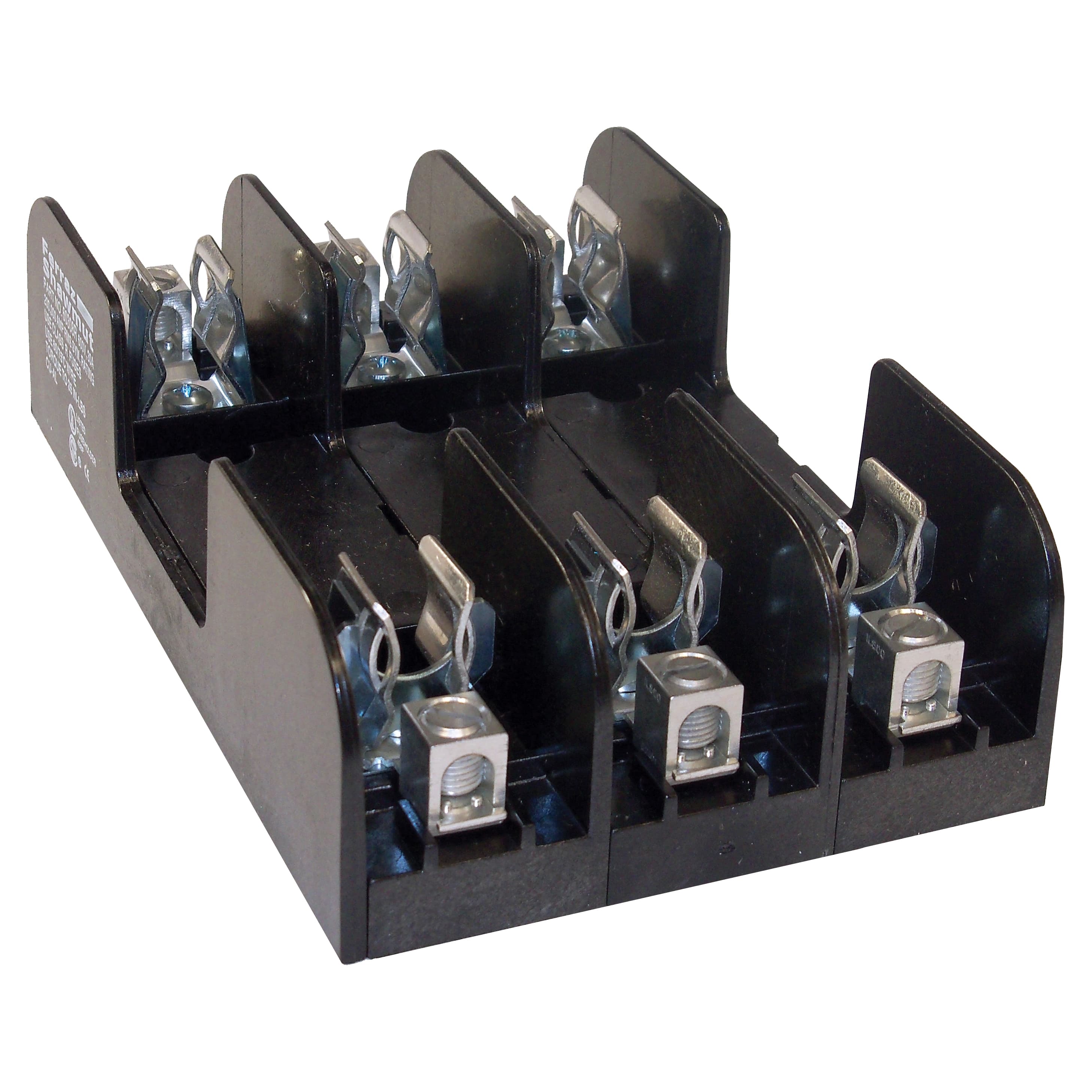

60308R Mersen - Fuse Block 600VAC 600VDC Class R 30A 3-Pole Box with Reinforced Clip

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the 60308R Mersen price in the box on the right side or send a quick quote.

Product Details

Number of Poles
3 Pole
Current Rating
30 A
Weight
385.9 g
Voltage
600 VAC
Sell Pack Height
4.62 in
Sell Pack Quantity
5 Each
Installation Mounting
Direct Screw Mount
Product Width
4.56 in
Body/Insulating Material
GFPC
Fuse Class
Class R
ROHS Compliant
Yes
Sell Pack Length
10.12 in
Sell Pack Width
7.06 in
Sell Pack Weight
4.46 lb
Product Length
7 in
Max Fuse Rating
30 A
Product Height
2 in
Product Weight
0.85 lb
Fuse Installation Method
Clip-in
Number of Poles
3-pole

Rated voltage DC UL

600 V

Ampere Rating

30 A

Short Circuit Current Rating (SCCR)

200

Fuse Type/Class

Class R

Rated voltage AC UL

600 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

60308R Description

60308R Mersen - Fuse Block 600VAC 600VDC Class R 30A 3-Pole Box with Reinforced Clip | Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired.

All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced. | Features: | Application:
