40112G Mersen Fuse Holders
Part#:40112G
Manufacturer:Mersen
Alt. Part#:782001674656
Product Lifecycle:Active
Get a quick Quote!

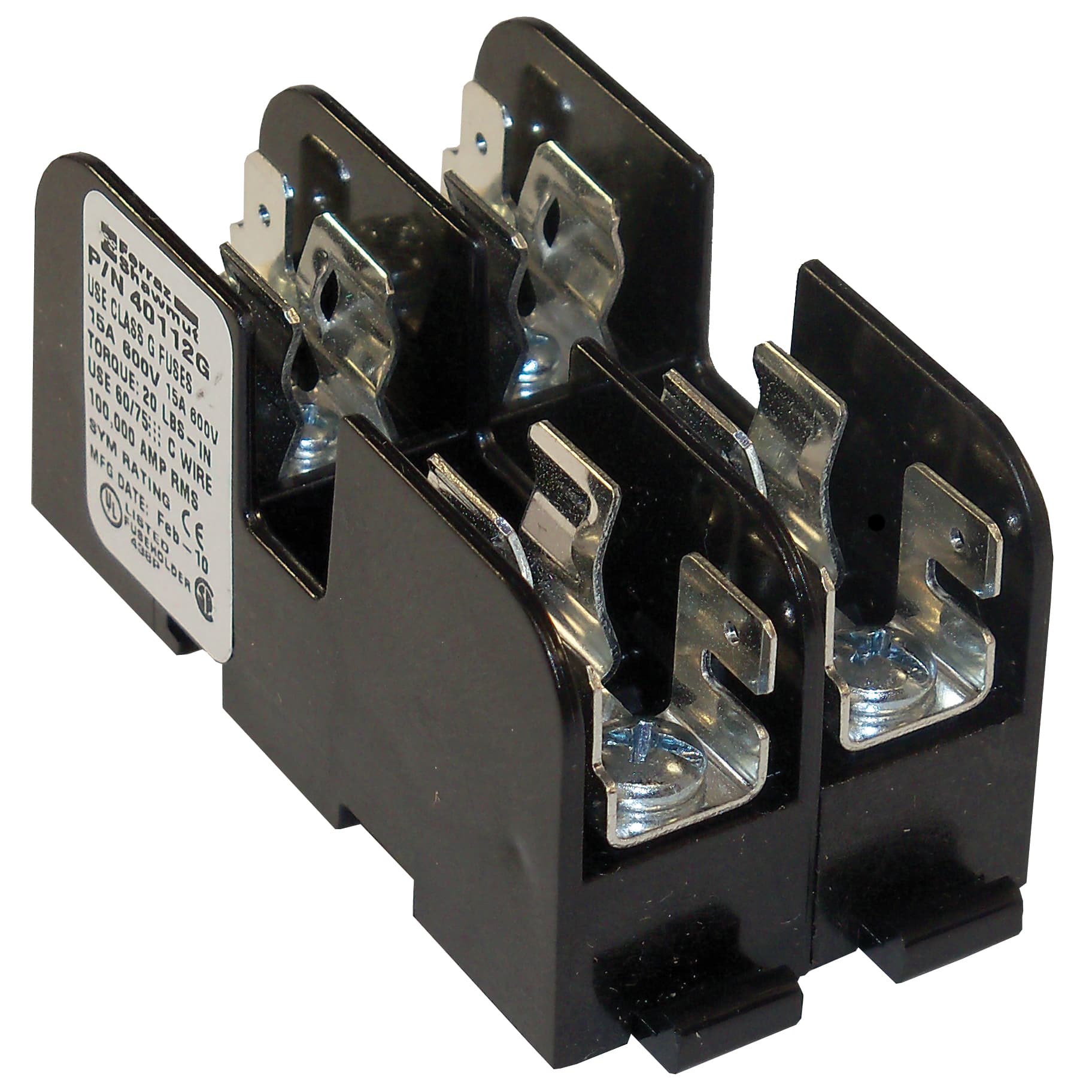

40112G Mersen - Fuse Block 600VAC 600VDC Class G 15A 2-Pole Screw with Reinforced Clip
About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.
Check out the 40112G Mersen price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2 Pole
- Current Rating 15 A
- Weight 113.5 g
- Voltage 600 VAC
- Sell Pack Height 3.06 in
- Sell Pack Length 7 in
- Sell Pack Width 3.12 in
- Sell Pack Weight 1.31 lb
- Sell Pack Quantity 5 Each
- Product Height 1.45 in
- Product Length 3.05 in
- Product Width 1.62 in
- Installation Mounting Screw Mount or DIN Rail
- Max Fuse Rating 15 A
- Product Weight 0.25 lb
- Body/Insulating Material GFPC
- Fuse Class Class G
- Fuse Type/Class Class G
- Fuse Installation Method Clip-in
- Short Circuit Current Rating (SCCR) 100
- Number of Poles 2-pole
- Wiring range Cu #10-14
- Ampere Rating 15 A
- ROHS Compliant Yes
- Rated voltage AC UL 600 V
- Rated voltage DC UL 600 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
40112G Description
40112G Mersen - Fuse Block 600VAC 600VDC Class G 15A 2-Pole Screw with Reinforced Clip | Mersen Class G fuse blocks accommodate all 15, 20, 30 and 60 ampere Class G fuses. A choice of box, screw or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy. | Features: *Unique integral DIN-rail adapters for 15, 20 & 30A blocks
*Unique adder-block design (all ampere ratings) for design flexibility
*Spring reinforcing standard for 60A clips
*Features high conductivity copper alloy fuse clips | Application:
Related documents 40112G Specs
