TA-1000-S Ilsco Industrial Automation Components

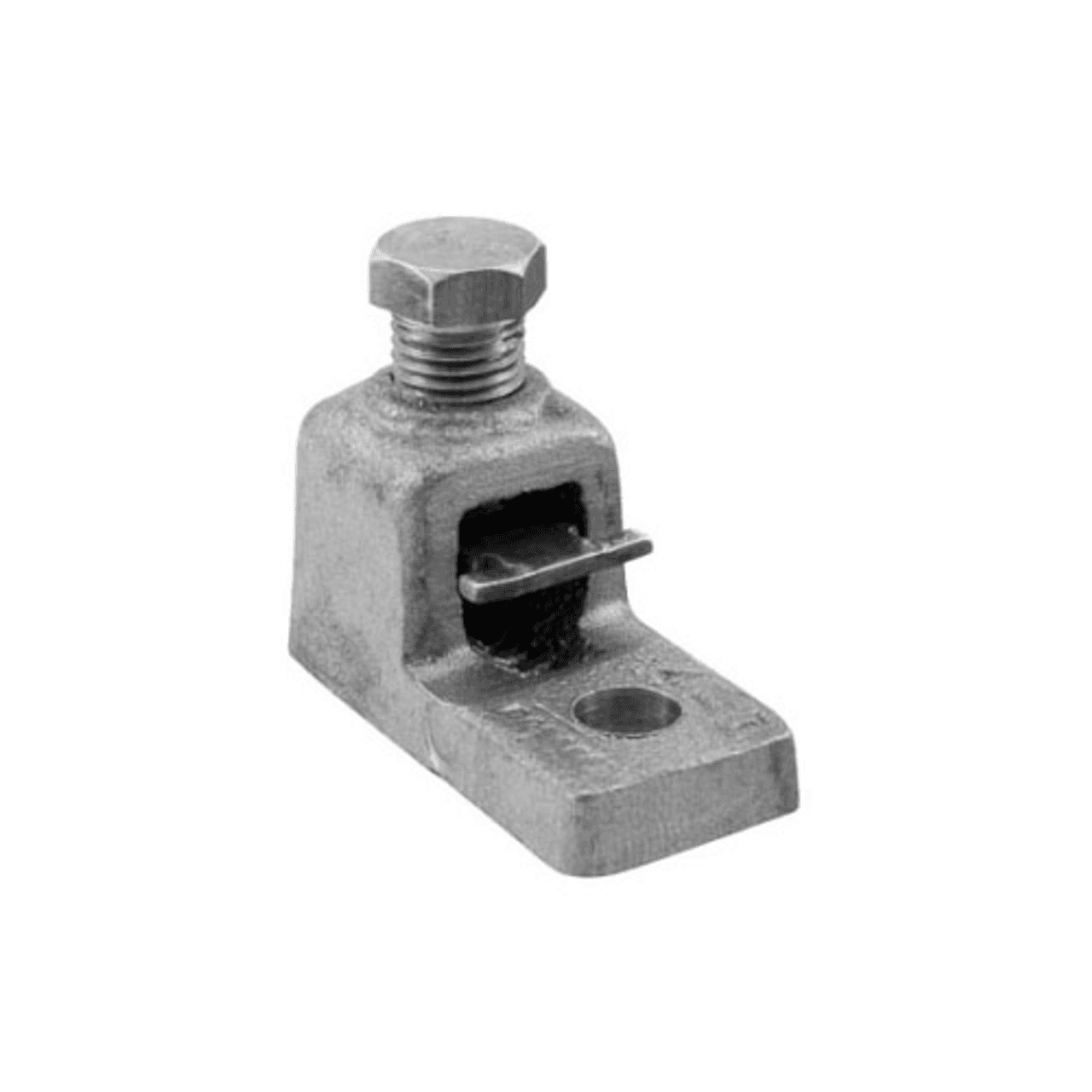

Ilsco TA-1000-S 500 to 1000 KCMIL Stranded Aluminum/Copper, 5/8" Stud, 3-1/4" L, 1-3/4" x 1-7/16" x 1/2" Thick Pad, 35 kV, Silver, Electro Tin Plated Aluminum Alloy, 1-Conductor, 1-Hole, Hex Drive, Dual Rated, Thru Hole, Mechanical Cable Lug (3 per Pack)
Ilsco

Part#:TA-1000-S

Manufacturer:Ilsco

Product Lifecycle:Active

Get a quick Quote!

500 to 1000 KCMIL Stranded Aluminum/Copper, 5/8" Stud, 3-1/4" L, 1-3/4" x 1-7/16" x 1/2" Thick Pad, 35 kV, Silver, Electro Tin Plated Aluminum Alloy, 1-Conductor, 1-Hole, Hex Drive, Dual Rated, Thru Hole, Mechanical Cable Lug (3 per Pack)

About the manufacturer: Ilsco is one of the manufacturers that offers Industrial Automation Components that you can order at Advantage Electric Supply site. ILSCO is a family-owned company that produces electrical connectors and accessories, with operations in three countries and a total of eight locations. The company employs over 1,000 individuals and representatives.

Check out the TA-1000-S Ilsco price in the box on the right side or send a quick quote.

Product Details

  • Conductor Material:
    Aluminum/Copper
  • Material:
    Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
  • Stud Size:
    5/8 Inch
  • Screw Type:
    9/16 Inch Hex
  • Type:
    Chamfered Wire Entry
  • Series:
    TA
  • Pad Type:
    Straight
  • Pad Size:
    1-3/4 Inch L x 1-7/16 Inch W x 1/2 Inch Thk
  • Overall Length:
    3-1/4 Inch
  • Minimum Conductor Size:
    500 KCMIL
  • Number of Pad Holes:
    1
  • Number of Conductors:
    1
  • Maximum Conductor Size:
    1000 KCMIL
  • Shipping Weight:
    0.40 lbs.
  • Shipping Height:
    2.00 In.
  • Approval:
    UL 453G
  • UPC:
    78366989566
  • Shipping Width:
    2.00 In.
  • Shipping Length:
    4.00 In.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents TA-1000-S Specs

TA-1000-S SpecificationTechnical.pdf
TA-1000-S CADDrawing.pdf
