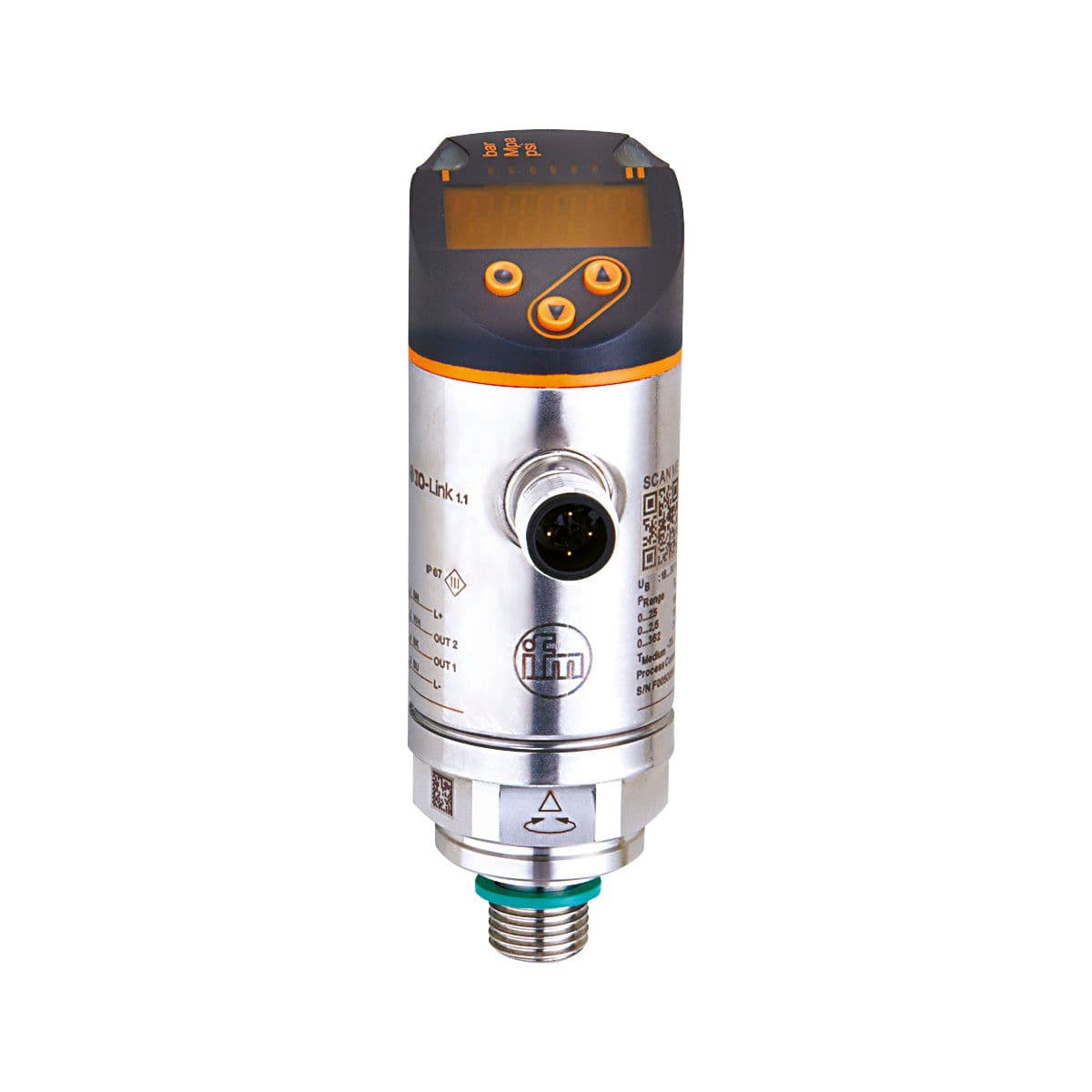

PN2514 ifm Electronic Electronic Components

Product Details

• Medium temperature [°C]
  -25...80
• Protection class
  III
• Permanent current rating of switching output DC [mA]
  250
• Analog voltage output [V]
  0...10; (scalable 1:5)
• Media
  liquids and gases
• Min. insulation resistance [MΩ]
  100; (500 V DC)
• Output function
  normally open / closed; (configurable)
• Process connection
  threaded connection G 1/4 external thread (DIN EN ISO 1179-2); Internal thread:M5
• Current consumption [mA]
  < 35
• Number of digital outputs
  2
• Analog current output [mA]
  4...20; (scalable 1:5)
• Min. bursting pressure
  150 bar 2200 psi 15 MPa
• Measuring element
  ceramic-capacitive pressure measuring cell
• Reverse polarity protection
  yes
• Electrical design
  PNP/NPN
• Min. load resistance [Ω]
  2000
• Vacuum resistance [mbar]
  -1000
• Integrated watchdog
  yes
• Output signal
  switching signal; analog signal; IO-Link; (configurable)
• Switching frequency DC [Hz]
  < 500
Overload protection
yes
Measuring range
0...16 bar 0...232 psi 0...1.6 MPa
Type of pressure
relative pressure
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Number of analog outputs
1
Application
for industrial applications
Pressure rating
85 bar 1250 psi 8.5 Mpa
Power-on delay time [s]
0.3
Max. voltage drop switching output DC [V]
2
Type of short-circuit protection
yes (non-latching)
System
gold-plated contacts
Operating voltage [V]
18...30 DC; (according to EN 50178 SELV/PELV)
Total number of outputs
2
Max. load [Ω]
500
Short-circuit protection
yes
