AC3257 ifm Electronic Electronic Components
Part#:AC3257
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description

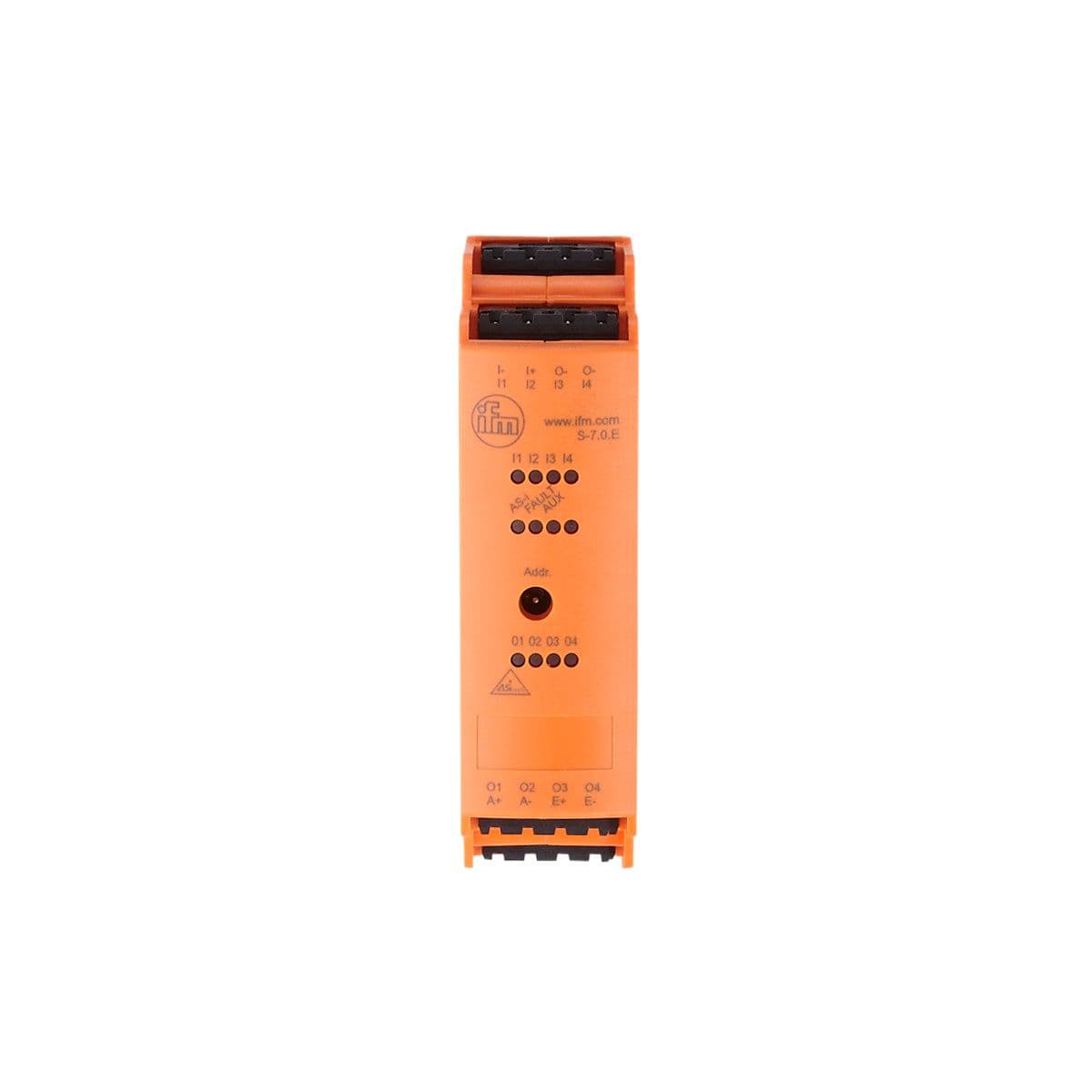

AS-Interface control cabinet module, Application: I/O modules for control cabinet installations
Product Details
- Digital inputs protected against short circuits yes
- Input circuit of digital inputs PNP; (type 2 according to IEC 61131-2)
- Short-circuit proof yes
- Sensor supply of the inputs AUX
- Number of digital outputs 4
- Additional voltage supply [V] 20...30 DC; (AUX)
- Input current High [mA] 6...10
- Max. current load outputs total [A] 4
- Operating voltage [V] 18...31.6 DC
- Min. switching level high signal [V] 11
- Electrically separated yes
- Number of inputs and outputs Number of digital inputs: 4; Number of digital outputs: 4
- Input current low [mA] 0...2
- Actuator supply outputs AUX
- Application I/O modules for control cabinet installations
- Voltage supply [V] 18...30; (DC)
- Voltage range DC [V] 20...30; (AUX)
- Max. current consumption from additional supply [mA] 5100; (AUX)
- Integrated watchdog yes
- Max. total current rating of inputs [mA] 1000
- Max. current load per output [mA] 1000; (utilization category DC-12: 700 mA; utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
- Number of digital inputs 4
- Max. current consumption from AS-i [mA] 30
- Circuit PNP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
