41.31.9.012.0010 Finder Control Relays

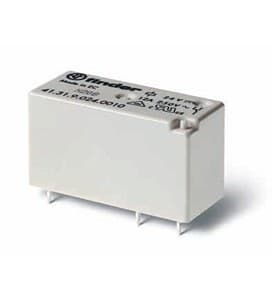

Finder 41.31.9.012.0010 Finder 41.31.9.012.0010 is a relay with a solder pin connection type, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings at higher DC voltages, including 0.3A at 110Vdc and 0.12A at 220Vdc. It features normally open (NO) auxiliary contacts for DC-1 applications. The supply voltage is specified for 1C/O or SPDT (Single Pole Double Throw) configurations, with an ambient air temperature for operation at 600VA (230Vac) and for storage at 3000VA (250Vac). The rated voltage for AC operation is supported within an ambient temperature range of -40 to +85 degrees Celsius, with a communication protocol of type C. The relay has a net width of 15.7 mm, a control voltage of 6 kV, and is designed for PCB or plug-in mounting with a net depth of 29 mm. It operates with 1 pole, has a power consumption width of 12.6 mm, and features protection functions rated at 250Vac. The relay is capable of 60,000 operations for normally closed (NC) circuits and has a durability of 10,000,000 operations. The contact material is AgNi (Silver Nickel).
Finder

Part#:41.31.9.012.0010

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

Finder 41.31.9.012.0010 is a relay with a solder pin connection type, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings at higher DC voltages, including 0.3A at 110Vdc and 0.12A at 220Vdc. It features normally open (NO) auxiliary contacts for DC-1 applications. The supply voltage is specified for 1C/O or SPDT (Single Pole Double Throw) configurations, with an ambient air temperature for operation at 600VA (230Vac) and for storage at 3000VA (250Vac). The rated voltage for AC operation is supported within an ambient temperature range of -40 to +85 degrees Celsius, with a communication protocol of type C. The relay has a net width of 15.7 mm, a control voltage of 6 kV, and is designed for PCB or plug-in mounting with a net depth of 29 mm. It operates with 1 pole, has a power consumption width of 12.6 mm, and features protection functions rated at 250Vac. The relay is capable of 60,000 operations for normally closed (NC) circuits and has a durability of 10,000,000 operations. The contact material is AgNi (Silver Nickel).

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Advantage Electric Supply site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 41.31.9.012.0010 Finder price in the box on the right side or send a quick quote.

Product Details

  • Control Voltage (DC)
    12Vdc
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Degree of protection
    RT II
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Height (mm)
    15.7 mm
  • Main function
    Relay
  • Connection type
    Solder pin
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Net Width (mm)
    29 mm
  • Product series / family name
    41 series
  • Rated voltage (AC)
    250Vac
  • Rated impulse voltage (Uimp)
    6 kV
  • Primary brand
    Finder
  • Rated power
    600VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Mounting mode
    PCB Plug-in
  • Electrical durability (with load)
    60 000 operations
  • Net Depth (mm)
    12.6 mm
  • Compliant with standard(s)
    cURus RINA IMQ VDE EAC EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61810-1 EN 62314

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 41.31.9.012.0010 Specs

41.31.9.012.0010 Finder - 41 Series - Catalogue.pdf
