40.61.7.048.0001 Finder Control Relays
Part#:40.61.7.048.0001
Manufacturer:Finder
Product Lifecycle:Active
Get a quick Quote!

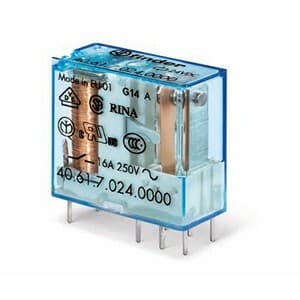

Miniature electromechanical PCB power relay - Wash-tight (RTIII) - Finder (40 series) - Control coil voltage 48Vdc - 1 pole (1P) - 1C/O / SPDT (Single Pole Double Throw) contact - Rated current 16A (250Vac; AC-1) / 16A (30Vdc; DC-1) - Rated switching powe
About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Advantage Electric Supply site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.
Check out the 40.61.7.048.0001 Finder price in the box on the right side or send a quick quote.
Product Details
- Main function Relay
- Control Voltage (DC) 48Vdc
- Ambient air temperature for operation -40...+85 °C
- Rated impulse voltage (Uimp) 6 kV
- Contacts coating AgCdO (Silver Cadmium Oxide)
- Distance 5.3mm pins pitch
- Connection type Solder pin
- Degree of protection RT III
- Electrical durability (with load) 100 000 operations
- Rated current 16A (250Vac; AC-1) 16A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
- Rated power 1000VA (230Vac; AC-15) 4000VA (250Vac; AC-1) 0.5W
- Compliant with standard(s) cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
- Net Height (mm) 25 mm
- Primary brand Finder
- Rated voltage (AC) 250Vac
- Contacts type 1C/O / SPDT (Single Pole Double Throw)
- Mechanical durability (at no load) 10 000 000 operations
- Net Width (mm) 29 mm
- Product series / family name 40 series
- Poles 1 Pole(s)
- Mounting mode PCB Plug-in
- Power consumption 0.5 W
- Net Depth (mm) 12.4 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents 40.61.7.048.0001 Specs
