39.71.0.024.5060 Finder Control Relays

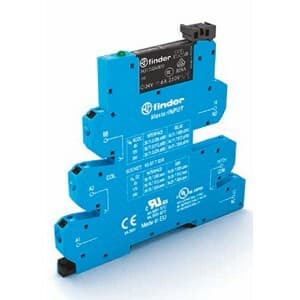

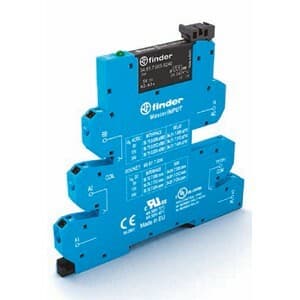

Finder 39.71.0.024.5060 Finder 39.71.0.024.5060 is a relay designed for various applications, featuring a spring / push-in connection type. It supports a rated current of 6A for both 250Vac (AC-1) and 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. The supply voltage is specified as 1C/O / SPDT (Single Pole Double Throw) with a net width of 24Vdc and poles rated at 250Vac. The net depth is marked at 6 kV, and the control voltage for AC is 6.2 mm. It is designed for mounting on a DIN rail or as a plug-in unit, with a power consumption of 24Vac (50Hz/60Hz). The relay operates efficiently within an ambient air temperature range for operation at 300VA (230Vac, AC-15) and for storage at 1500VA (250Vac, AC-1). Its electrical durability is compliant with EN61984 standards, and it features mechanical durability with AgNi+Au (gold-plated silver-nickel) protected poles. The relay is designed for a single pole (1 Pole(s)) and has a color-coded system for easy identification during installation.
Finder

Part#:39.71.0.024.5060

Manufacturer:Finder

Product Lifecycle:Active

Get a quick Quote!

Finder 39.71.0.024.5060 is a relay designed for various applications, featuring a spring / push-in connection type. It supports a rated current of 6A for both 250Vac (AC-1) and 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. The supply voltage is specified as 1C/O / SPDT (Single Pole Double Throw) with a net width of 24Vdc and poles rated at 250Vac. The net depth is marked at 6 kV, and the control voltage for AC is 6.2 mm. It is designed for mounting on a DIN rail or as a plug-in unit, with a power consumption of 24Vac (50Hz/60Hz). The relay operates efficiently within an ambient air temperature range for operation at 300VA (230Vac, AC-15) and for storage at 1500VA (250Vac, AC-1). Its electrical durability is compliant with EN61984 standards, and it features mechanical durability with AgNi+Au (gold-plated silver-nickel) protected poles. The relay is designed for a single pole (1 Pole(s)) and has a color-coded system for easy identification during installation.

About the manufacturer: Finder is one of the manufacturers that offers Control Relays that you can order at Advantage Electric Supply site. Established in 1993, Finder Relays, Inc., a subsidiary of Finder S.p.A., distributes the Finder product line in the United States. Situated north of Atlanta, Georgia, our facility boasts a robust infrastructure, enabling us to serve customers nationwide effectively.

Check out the 39.71.0.024.5060 Finder price in the box on the right side or send a quick quote.

Product Details

  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Control Voltage (DC)
    24Vdc
  • Compliant with standard(s)
    cURus RINA CSA VDE EAC CE EN 60664-1 EN 60715 EN 61984
  • Net Width (mm)
    6.2 mm
  • Sub-range name
    MasterINPUT
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Contents
    (Socket) 93.67.7.024 (Relay) 34.51.7.024.5010
  • Mounting location
    EN61984
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    DIN rail Plug-in
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Main function
    Relay
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Poles
    1 Pole(s)
  • Contacts coating
    AgNi+Au (Gold plated silver-nickel)
  • Product series / family name
    39 series
  • Connection type
    Spring / Push-in
  • Rated impulse voltage (Uimp)
    6 kV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents 39.71.0.024.5060 Specs

39.71.0.024.5060 Finder - 39 Series - Catalogue.pdf
