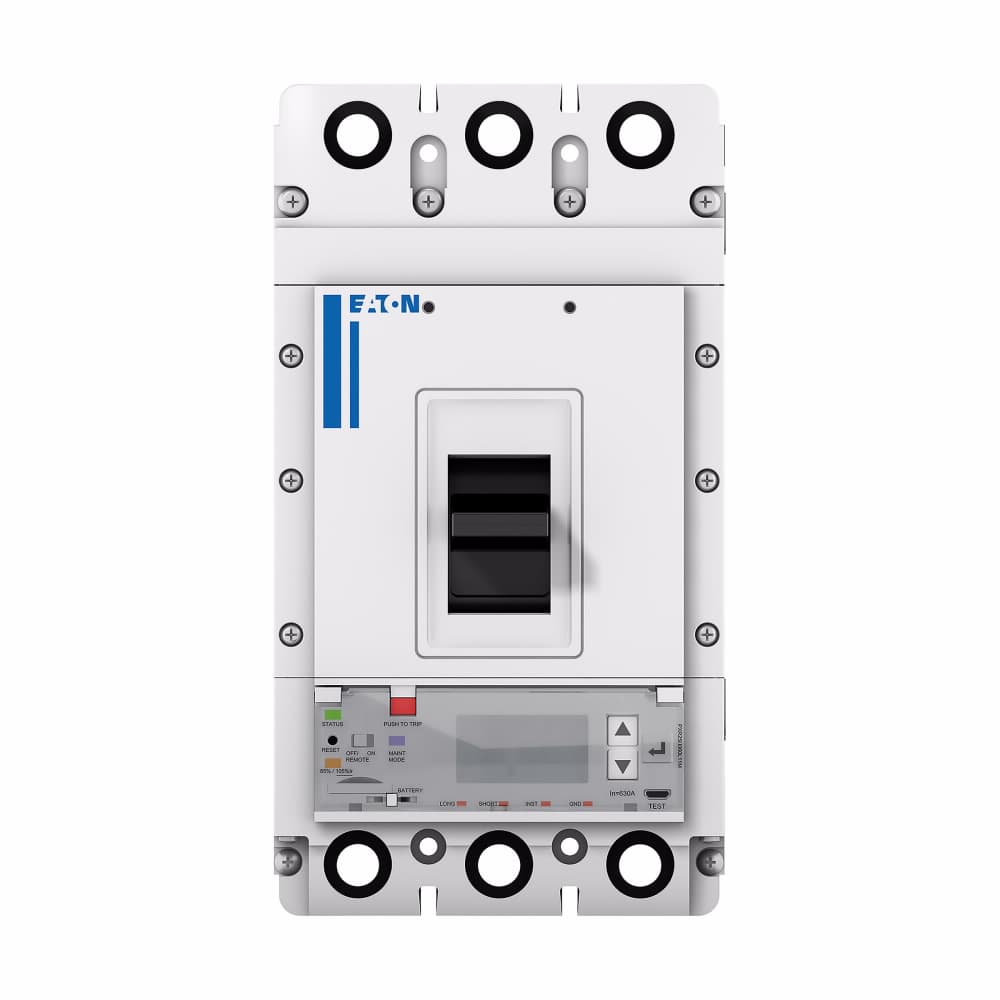

PDG32P0125P4WK Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32P0125P4WK
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 100kA/480V, PXR25 ARMS LSI w/ Modbus RTU, ZSI and Relays, Standard Terminals Line Only (PDG3X2TA300)
Product Details
- Product Length/Depth 109.1 mm
- Circuit breaker type PD3 Global
- Voltage rating 600 Vac
- Product Height 257.1 mm
- Interrupt rating range 65 kAIC @600V (UL/CSA) 40 kAIC Icu/ 25 kAIC Ics/ 84 kAIC Icm @525V South Africa (IEC) 100 kAIC Icu/ 50 kAIC Ics/ 220 kAIC Icm @440V (IEC) 100 kAIC Icu/ 70 kAIC Ics/ 220 kAIC Icm @380-415V (IEC) 20 kAIC Icu/ 10 kAIC Ics/ 42 kAIC Icm @690V (IEC) 22 kAI
- Product Width 138.9 mm
- Amperage Rating 125 A
- Trip Type PXR 25 LSI w/ARMS
- Compliances RoHS Compliant
- Number of poles Two-pole
- Communication Modbus RTU
- Interrupt rating 100 kAIC at 480 Vac
- Switch off technique Electronic
- Catalog Number PDG32P0125P4WK
- Frame 3
- Class Class A
- UPC 786679880364
- Rated operation voltage (Ue) at AC - max 600
- Circuit breaker frame type Complete breaker
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Special features ZSI / Modbus / Relays
- Product Weight 5.2163 kg
- Certifications IEC 60947-2 UL 489 CCC Marked CSA
- Product Name Eaton Power Defense molded case circuit breaker
- Voltage rating - max 600 V
- Terminals Standard Terminals Line Only
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
