PDG10G0090TFFL Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG10G0090TFFL
Manufacturer:Eaton
Category:Molded Case Circuit Breakers (MCCB)
Product Lifecycle:Active
Product description

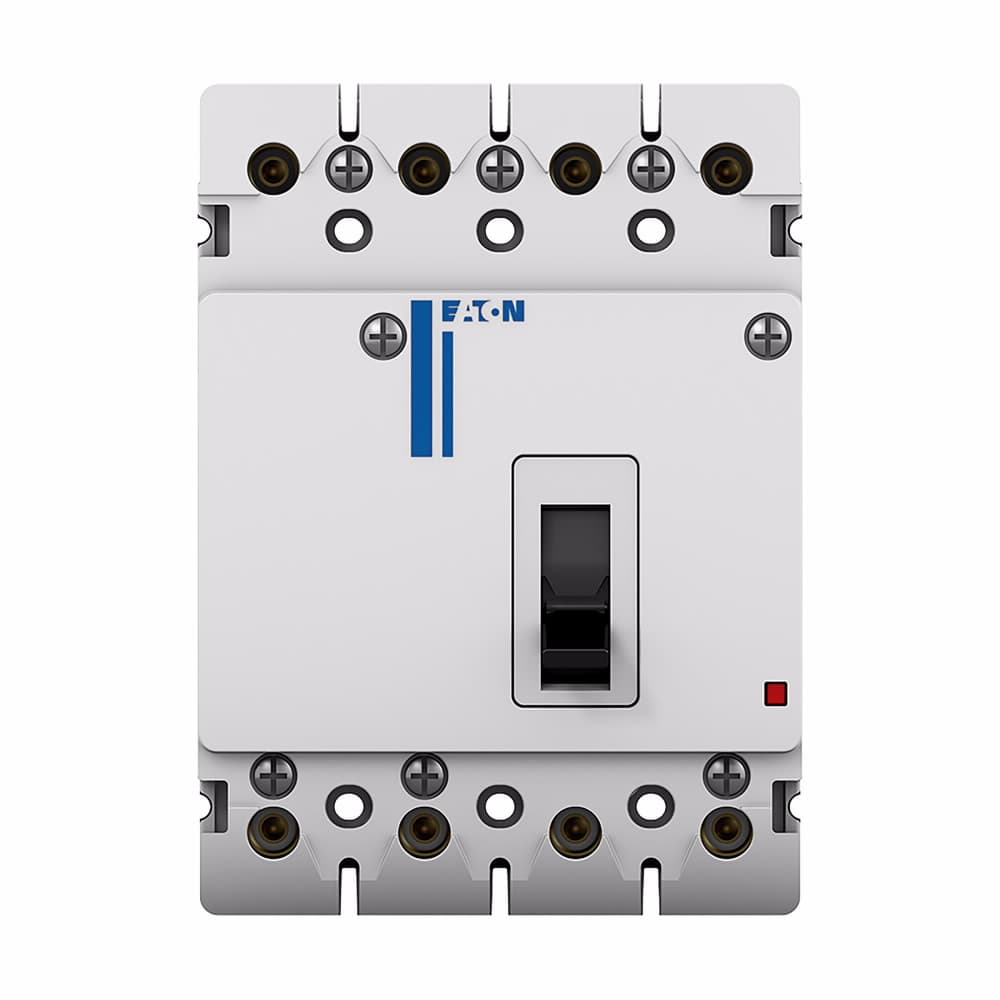

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (0% N), 90A, 35kA/480V, T-M (Fxd-Fxd) TU, Standard Terminals Load Only (PDG1X4T125)
Product Details
- Product Name Eaton Power Defense molded case circuit breaker
- Interrupt rating 35 kAIC at 480 Vac
- Terminals Standard Terminals Load Only
- Product Weight 2.22 kg
- Rated operation voltage (Ue) at AC - max 600
- Voltage rating 600 Vac
- Product Height 139.7 mm
- Circuit breaker frame type Complete breaker
- Product Length/Depth 75.95 mm
- Voltage rating - max 600 V
- Protection 0% neutral protection
- Catalog Number PDG10G0090TFFL
- Frame 1
- Class Class A
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Interrupt rating range 36 kAIC Icu/ 36 kAIC Ics/ 76 kAIC Icm @380-415V (IEC) 18 kAIC @600V (UL/CSA) 22 kAIC Icu @125 Vdc 22 kAIC Icu @250 Vdc 35 kAIC @480V (UL) 55 kAIC Icu/ 55 kAIC Ics/ 121 kAIC Icm @240V (IEC) 65 kAIC @240V (UL)
- Certifications CCC Marked IEC 60947-2 UL 489 CSA
- Switch off technique Thermomagnetic
- Product Width 101.6 mm
- Number of poles Four-pole (0% N)
- UPC 786679789070
- Circuit breaker type PD1 Global
- Compliances RoHS Compliant
- Amperage Rating 90 A
- Trip Type T-M (Fxd-Fxd) TU
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
PDG10G0090TFFL Eaton
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare PDG10G0090TFFL with other Molded Case Circuit Breakers (MCCB) products
Product Name
Interrupt rating
Terminals
Product Weight
Rated operation voltage (...
Voltage rating
Product Height
Circuit breaker frame typ...
Product Length/Depth
Voltage rating - max
Selected product
PDG10G0090TFFL
Eaton
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 1, Four Pole (0% N), 90A, 35k...
Product NameEaton Power Defense molded c...
Interrupt rating35 kAIC at 480 Vac
TerminalsStandard Terminals Load Only
Product Weight2.22 kg
Rated operation voltage (Ue) at AC - max600
Voltage rating600 Vac
Product Height139.7 mm
Circuit breaker frame typeComplete breaker
Product Length/Depth75.95 mm
Voltage rating - max600 V
Product Name-
Interrupt rating-
Terminals-
Product Weight-
Rated operation voltage (Ue) at AC - max-
Voltage rating-
Product Height-
Circuit breaker frame type-
Product Length/Depth-
Voltage rating - max-
About the manufacturer
Advantage Electric Supply is an authorized Eaton distributor, dedicated to bringing you the highest-quality industrial solutions. Eaton, a global leader in power management and electrical components, specializes in a wide array of products designed to optimize operational efficiency and enhance safety across various industries. From electrical control systems to cutting-edge automation technologie...
About the Product Category
An MCCB, or Molded Case Circuit Breaker, is an electrical safety device that automatically disconnects electrical power when it identifies an overload, short circuit, or ground fault. Its purpose is to safeguard an electrical circuit from harm due to excessive current caused by an overload or short circuit.
