FAZ-S2/1 Eaton Supplementary Protectors

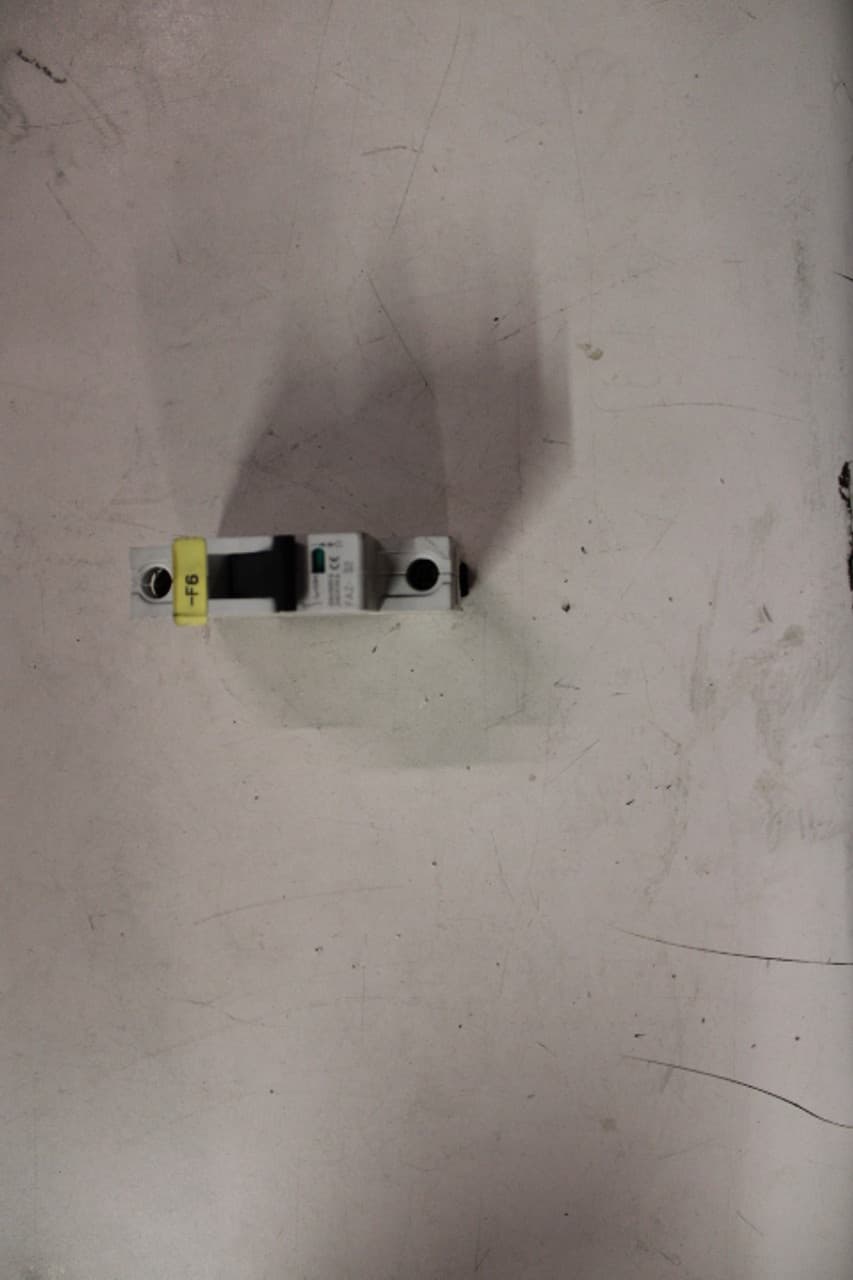

Eaton FAZ-S2/1 277/480 VAC 50/60 Hz, 2 A, 1-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic, Supplementary Protector
Eaton

Part#:FAZ-S2/1

Manufacturer:Eaton

Product Lifecycle:Active

Get a quick Quote!

277/480 VAC 50/60 Hz, 2 A, 1-Pole, 10 kA, 13 to 17 x Rated Current, Line/Load Terminal, DIN Rail Mount, Standard Packaging, S-Curve, Current Limiting, Thermal Magnetic, Supplementary Protector

About the manufacturer: Eaton is one of the manufacturers that offers Supplementary Protectors that you can order at Advantage Electric Supply site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.

Check out the FAZ-S2/1 Eaton price in the box on the right side or send a quick quote.

Product Details

  • UL CCN
    QVNU2
  • Terminal Type
    Compression
  • Trip Curve
    S
  • UL File No.
    E177451
  • Current Rating
    2 A
  • UL Standard
    1077
  • Number of Poles
    1 Pole
  • SCCR
    5 kA
  • Series:
    FAZ
  • Type:
    Current Limiting
  • Size:
    0.69 Inch Length
  • UPC:
    01508278607
  • Mounting:
    DIN Rail
  • Volts:
    277 VAC at 50/60 Hertz
  • Poles:
    1
  • Trip Setting:
    13 to 17 x Rated Current
  • Terminal Type:
    Screw
  • Shipping Height:
    4.00 In.
  • Approval:
    UL 1077
  • Interrupting Rating:
    5 Kiloamp at 277 Volt AC
  • Amps:
    2 A
  • Shipping Length:
    1.00 In.
  • Shipping Weight:
    0.25 lbs.
  • Shipping Width:
    3.00 In.
  • Number of poles
    Single-pole
  • Trip Type
    13-17X /n
  • Amperage Rating
    2 A
  • Catalog Notes
    Positioned for highly inductive loads especially in control circuits with coils and light filaments.
  • Certifications
    UL 1077 CSA Std. C22.2 No.235 IEC 60947-2
  • Terminals
    Standard
  • Product Name
    Eaton FAZ supplementary protector
  • Warranty
    1 year
  • Product Width
    .75 in
  • Product Weight
    .5 lb
  • Product Height
    1 in
  • EAN
    4015082786076
  • Product Length/Depth
    1 in
  • Catalog Number
    FAZ-S2/1

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Related documents FAZ-S2/1 Specs

FAZ-S2/1 Data Sheet:.pdf
FAZ-S2/1 Specification/Technical:.pdf

Manufacturer warranty

$225.34

Request a quote, and we will send availability within minutes.

Select Qty:

$225.34

$225.34 each
