CA30EAN25BPM1IO Carlo Gavazzi Industrial Automation Components

CA30EAN25BPM1IO on Advantage Electric Supply
Carlo Gavazzi

Part#:CA30EAN25BPM1IO

Manufacturer:Carlo Gavazzi

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

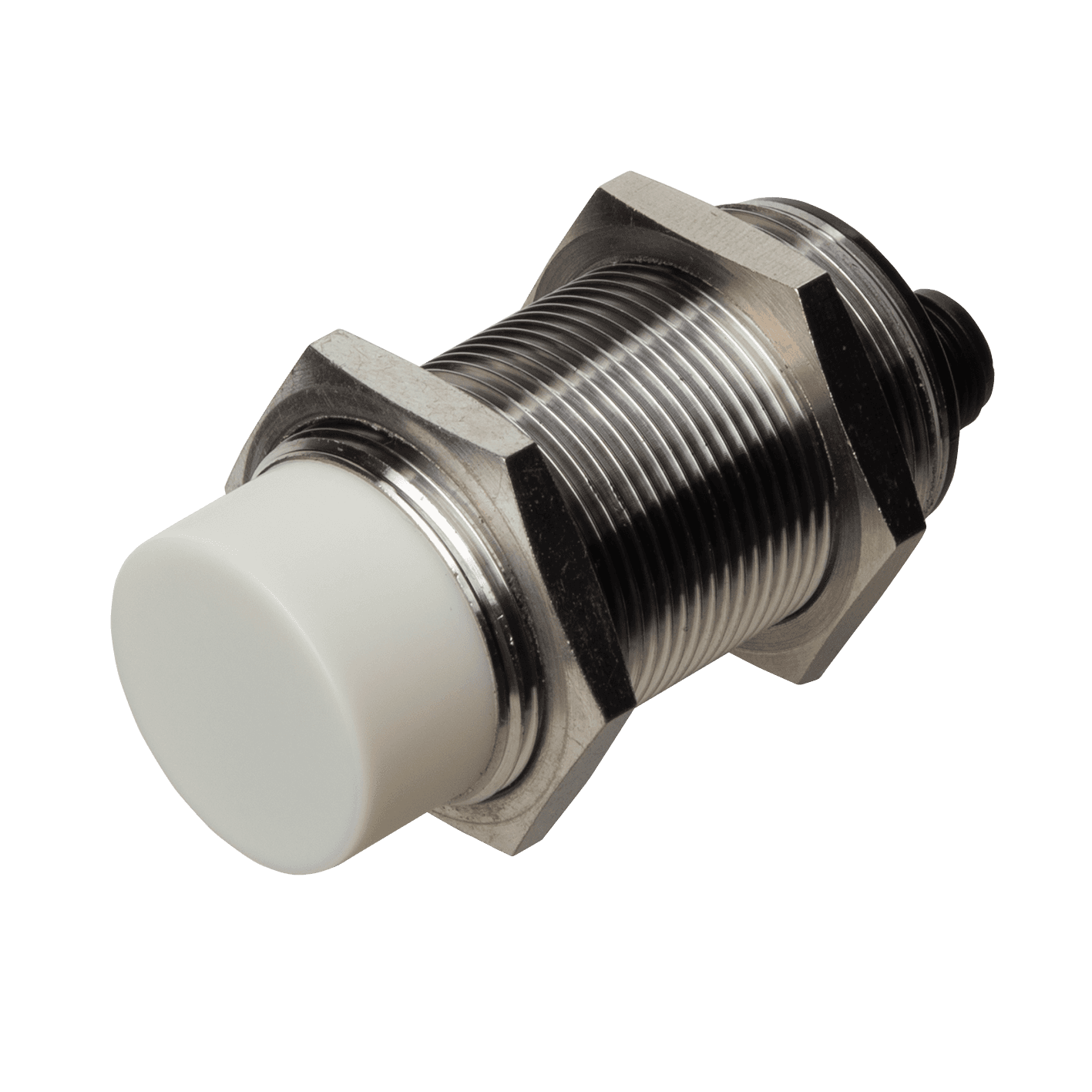

Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 25mm, Adjustable 4-30mm, Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link Connector M12, Housing AISI316L M30 x 61mm, 4th Generation Tripleshield, Improved EMC performances, ECOLAB, IP69K

Product Details

  • Degree of protection
    IP67, IP68, IP69K
  • Rated power supply
    12 V ... 36 V
  • Connection type
    Connector M12
  • Output type
    PNP/NPN
  • Diameter
    30 mm
  • Housing type
    Cylindrical, threaded barrel
  • Installation Type
    Non-Flush
  • Output function
    Configurable
  • Rated operating distance
    25 mm
  • Housing material
    Metal

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CA30EAN25BPM1IO on Advantage Electric Supply is $328.00. Order now.

About the product

CA30EAN25BPM1IO Carlo Gavazzi - CAP PROX SS M30 NON-FLUSH IO-LINK, PLUG
