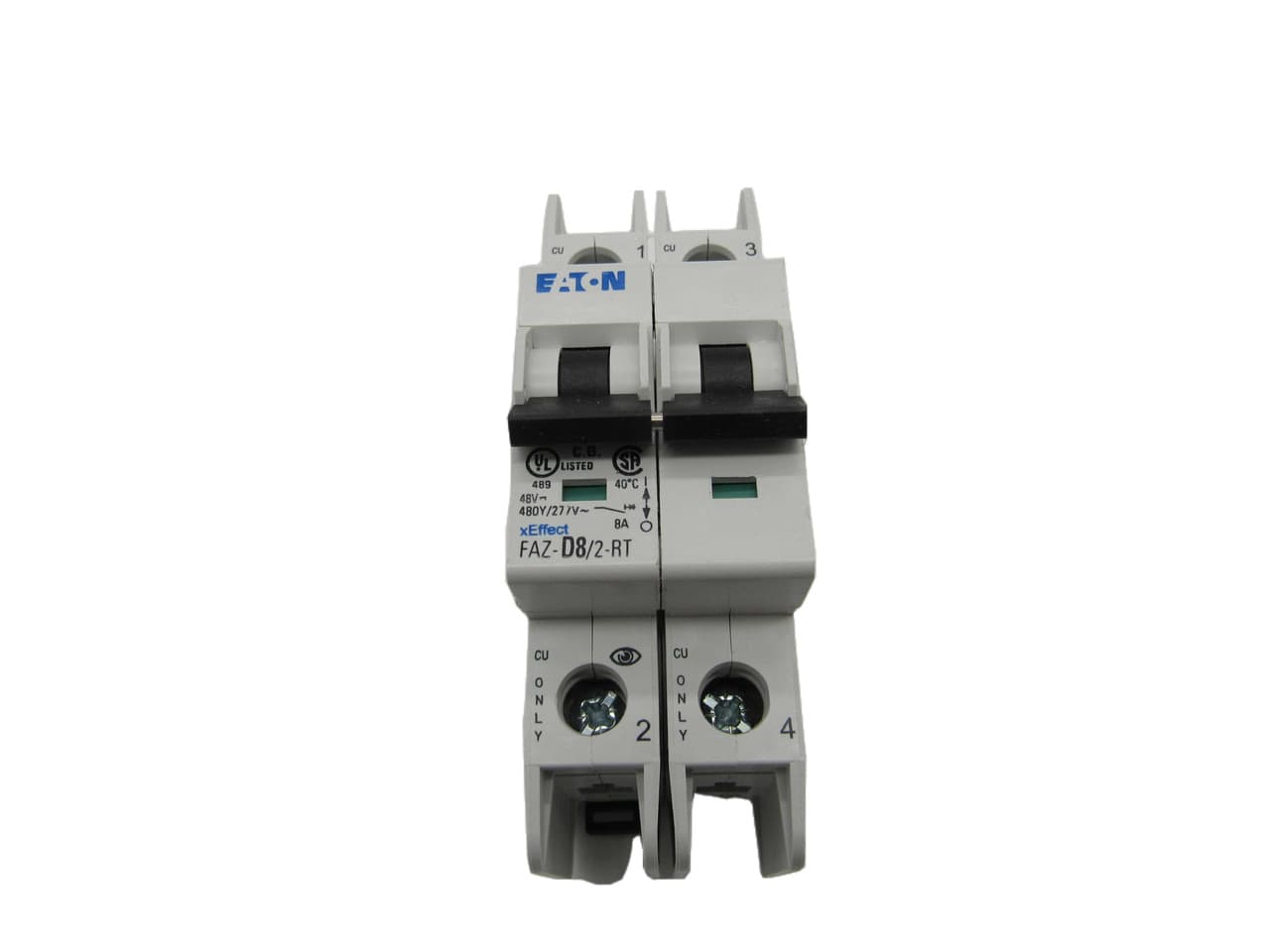

FAZ-D8/2-RT Eaton Miniature Circuit Breakers (MCBs)
Part#:FAZ-D8/2-RT
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!
277/480 VAC 50/60 Hz, 8 A, 2-Pole, 10/14 kA, 10 to 20 x Rated Current, Ring Tongue Terminal, DIN Rail Mount, Standard Packaging, D-Curve, Current Limiting, Thermal Magnetic
About the manufacturer: Eaton is one of the manufacturers that offers Miniature Circuit Breakers (MCBs) that you can order at Advantage Electric Supply site. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the FAZ-D8/2-RT Eaton price in the box on the right side or send a quick quote.
Product Details
- Number of Poles 2 Pole
- Current Rating 8 A
- Trip Curve D
- SCCR 10 kA
- UL Standard 489
- UL CCN DIVQ
- UL File No. E235139
- Terminal Type Ring Tongue
- Terminal Type: Ring Tongue
- Poles: 2
- Wire Size: 18 to 4/18 to 8 AWG
- Mounting: DIN Rail
- Interrupting Rating: 10 kA
- Trip Setting: 10 to 20 x Rated Current
- Volts: 277/480 VAC
- Size: 1.39 Inch Width x 2.36 Inch Depth x 4.13 Inch Height
- Shipping Weight: 1.00
- Amps: 32 A
- Approval: UL 489
- Shipping Length: 3.00 In.
- Shipping Height: 3.00 In.
- Type: Current Limiting
- UPC: 015081021028
- Series: FAZ
- Shipping Width: 3.00 In.
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Related documents FAZ-D8/2-RT Specs
